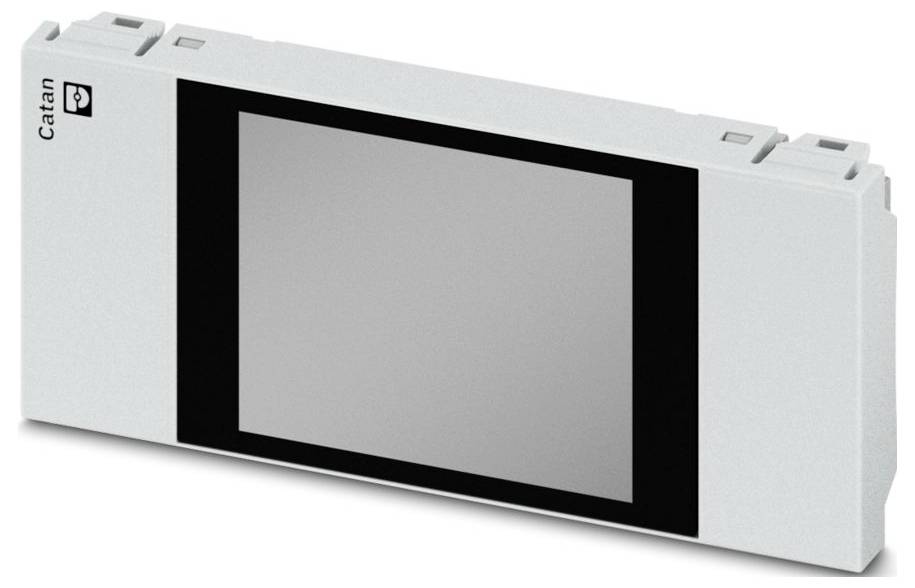

Phoenix Contact 1371366 CATAN CONTROL PANEL Display
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Catan
- USB 2.0 full speed, type C connector
- Width 44.6 mm
- Height: 15.3 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -5 °C ... 50 °C (up to 3000 m üNN)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Snap-in mounting (snap-on to Catan controller or Catan expansion module);Remote mounting in the control cabinet door (cable: See accessories, wall thickness: 1 mm ... 4 mm)
- Insulation properties: Insulation properties
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Mounting position: Horizontal
- Length: 107.6 mm.
- Transmission speed: Max. 12 MBit/s
- Material: Polycarbonate (housing)
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Number of interfaces: 1
- Location: Use indoors
- Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
- Note for application: Only for industrial use
- Supply: Supply
- Current consumption maximum: 160 mA max.
- Supply voltage:5 V DC (via USB interface of the Catan modules)
- Colour (housing top): Light gray (RAL 7035)
- Colour (lower part of housing): Grey (RAL 7042)
- Screen resolution 320 x 240 pixels
- Installation location: Sub-distribution;switch cabinet
- Weight: 58 g
- Display
- Display type 6.1 cm / 2.4" TFT
- Connection to Catan controller or Catan expansion module: Connection to Catan controller or Catan expansion module
- Manufacturer part #
1371366
- Type
CATAN CONTROL PANEL
- Product type
Display
- Type
2.4" TFT Display
- Interfaces
USB 2.0 Full speed, Type C connector
- Display
Yes
- Resolution
320 x 240 p
- Operating voltage
5 V / DC
- Height
15.3 mm
- Length
107.6 mm
- Width
44.6 mm
IP20
- Content
1 pc(s)
- Dim
(L x W x H) 107.6 x 44.6 x 15.3 mm
- Fitting type (details)
Snap-in mounting;offset mounting in switchboard doors
FALSE
-5-50 °C
0
0
0
0
0
FALSE
FALSE
FALSE
FALSE
None
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3583226 Phoenix Contact 1371366 CATAN CONTROL PANEL Display
User & Safety Instructions
User & Safety Instructions 3583226 Phoenix Contact 1371366 CATAN CONTROL PANEL Display
Description
Touch display for local priority operation and configuration of Catan controllers and Catan expansion modules. Display size 2.4". Connection via USB-C connector.
