Phoenix Contact 1396316 ANT-OMNI-0671-01 Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type N (female)
- Height: 158 mm
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Protection class IP67
- Ambient temperature (operation): -30 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Wall mount;mast mounting
- Frequency range: 0.6 GHz ... 7.1 GHz
- Stem wave ratio VSWR in 50-Ω-System: ≤ 3.50
- Diameter 24 mm
- External dimensions: External dimensions
- Delivery: Including mounting bracket and mast clamps
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Installation instructions: External and internal area
- Outer diameter: 30 mm ... 45 mm (mast)
- Other resistance: Seawater resistant
- Drill hole diameter 6 mm
- Impedance 50 Ω
- Frequency band:2400 MHz;868 MHz;700 MHz;800 MHz;850 MHz;900 MHz;1700 MHz;1800 MHz;1900 MHz;2100 MHz;2600 MHz;3600 MHz;5 GHz
- Gain: 2 dBi (617 MHz ... 960 MHz);1 dBi (1.4 GHz ... 1.6 GHz);2 dBi (1.7 GHz ... 2.7 GHz);3 dBi (3.3 GHz ... 7.1 GHz
- Vertical opening angle: 70 ° (617 MHz ... 960 MHz);60 ° (1.4 GHz ... 2.7 GHz);45 ° (3.3 GHz ... 5.9 GHz);30 ° 6.0 GHz ... 7.1 GHz
- Horizontal opening angle: 360 °
- Polarisation: linear, vertical
- Wind speed 220 km/h
- Maximum power 1.00 W.
- Radiation characteristics: Unidirectional
- Material (radom): Plastic (fiberglass-reinforced)
- Material (holder): Plastic (fiberglass reinforced)
- Material (U screw): Stainless steel V2A
- Type
ANT-OMNI-0671-01
- Product type
Antenna
- Manufacturer part #
1396316
- Dim
(L x W x H) 158 x 75 x 158 mm
- Operating temperature
-30 °C (min)
- Min. operating temperature
-30 °C
- Width
75 mm
- Height
158 mm
- Length
158 mm
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- Depth
24 mm
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3583260 Phoenix Contact 1396316 ANT-OMNI-0671-01 Antenna
User & Safety Instructions
User & Safety Instructions 3583260 Phoenix Contact 1396316 ANT-OMNI-0671-01 Antenna
Description

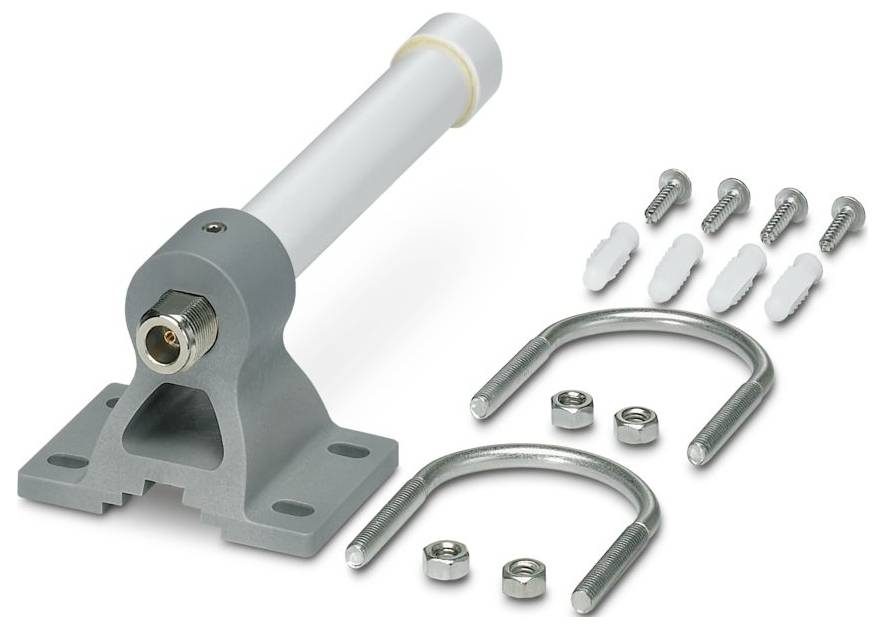

Multi-band omnidirectional antenna for wall or mast mounting, 0.6 GHz ... 7.1 GHz, gain: 1 dBi ... 3 dBi, protection class: IP67, seawater resistant, connection: N (female), including mounting bracket and mast clamps
