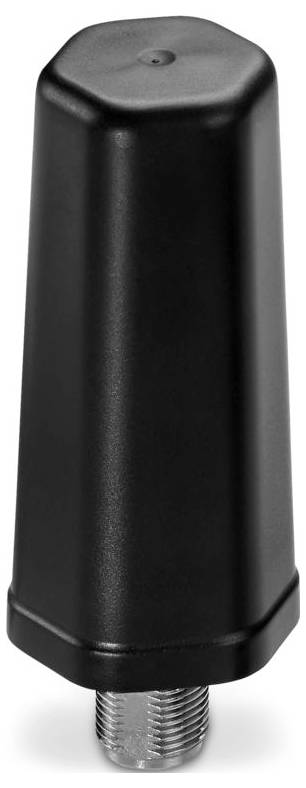

Phoenix Contact 1396318 ANT-OMNI-0671-02 Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type N (female)
- Height: 77.7 mm
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Protection class IP67
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Wall-mounting;control cabinet assembly
- Frequency range: 0.6 GHz ... 7.1 GHz
- Stem wave ratio VSWR in 50-Ω-System: ≤ 3.50
- Diameter 38 mm
- Scope of delivery: Includes mounting hardware
- Impact strength: IK10
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Installation instructions: External and internal area
- Other resistance: Seawater resistant
- Impedance 50 Ω
- Frequency band:2400 MHz;868 MHz;700 MHz;800 MHz;850 MHz;900 MHz;1700 MHz;1800 MHz;1900 MHz;2100 MHz;2600 MHz;3600 MHz;5 GHz
- Gain: 2 dBi (617 MHz ... 960 MHz);3 dBi (1.7 GHz ... 2.7 GHz);4 dBi (3.3 GHz ... 7.1 GHz
- Vertical opening angle: 55 ° (617 MHz ... 960 MHz);45 ° (1.7 GHz ... 2.7 GHz);30 ° (3.3 GHz ... 7.1 GHz
- Horizontal opening angle: 360 °
- Polarisation: linear, vertical
- Wind speed 220 km/h
- Maximum power 10.00 W.
- Radiation characteristics: Unidirectional
- Material (radom): Polycarbonate;PBT
- Type
ANT-OMNI-0671-02
- Product type
Antenna
- Manufacturer part #
1396318
- Dim
(L x W x H) 77.7 x 39.786677 x 77.7 mm
- Width
39.786677 mm
- Height
77.7 mm
- Length
77.7 mm
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- Depth
38 mm
IP67
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3583262 Phoenix Contact 1396318 ANT-OMNI-0671-02 Antenna
User & Safety Instructions
User & Safety Instructions 3583262 Phoenix Contact 1396318 ANT-OMNI-0671-02 Antenna
Description
Multi-band omnidirectional antenna with vandal protection for control cabinet mounting, frequency band: 0.6 GHz ... 7.1 GHz, gain: 2 dBi ... 4 dBi, protection class IP67, shock resistant: IK10, sea water resistant, connection: N (female)
This text is machine translated.
