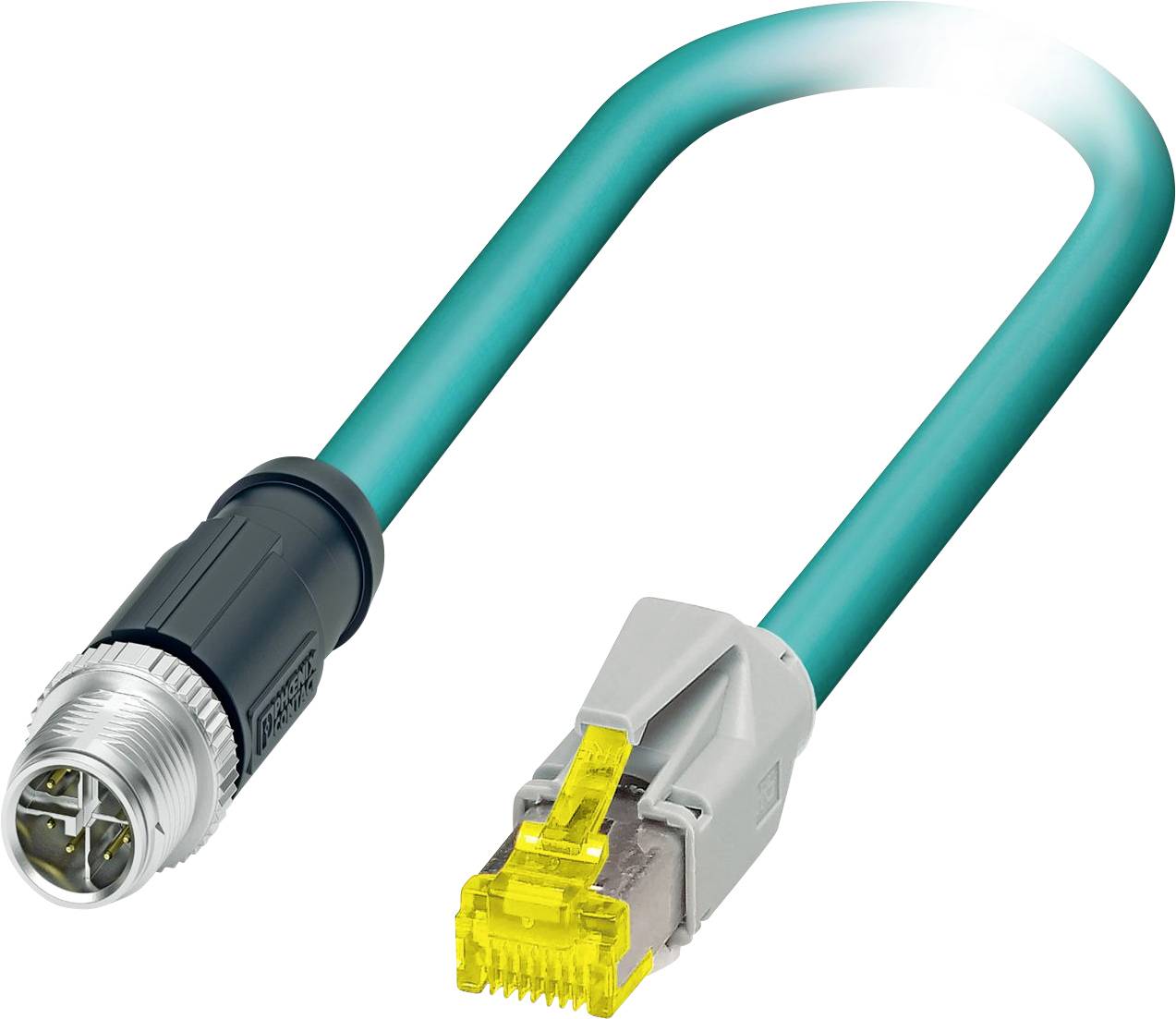

Phoenix Contact 1407474 Sensor/actuator cable Plug 10.00 m No. of pins (RJ): 8 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connector type
Plug
Connector standard
Sensor connector

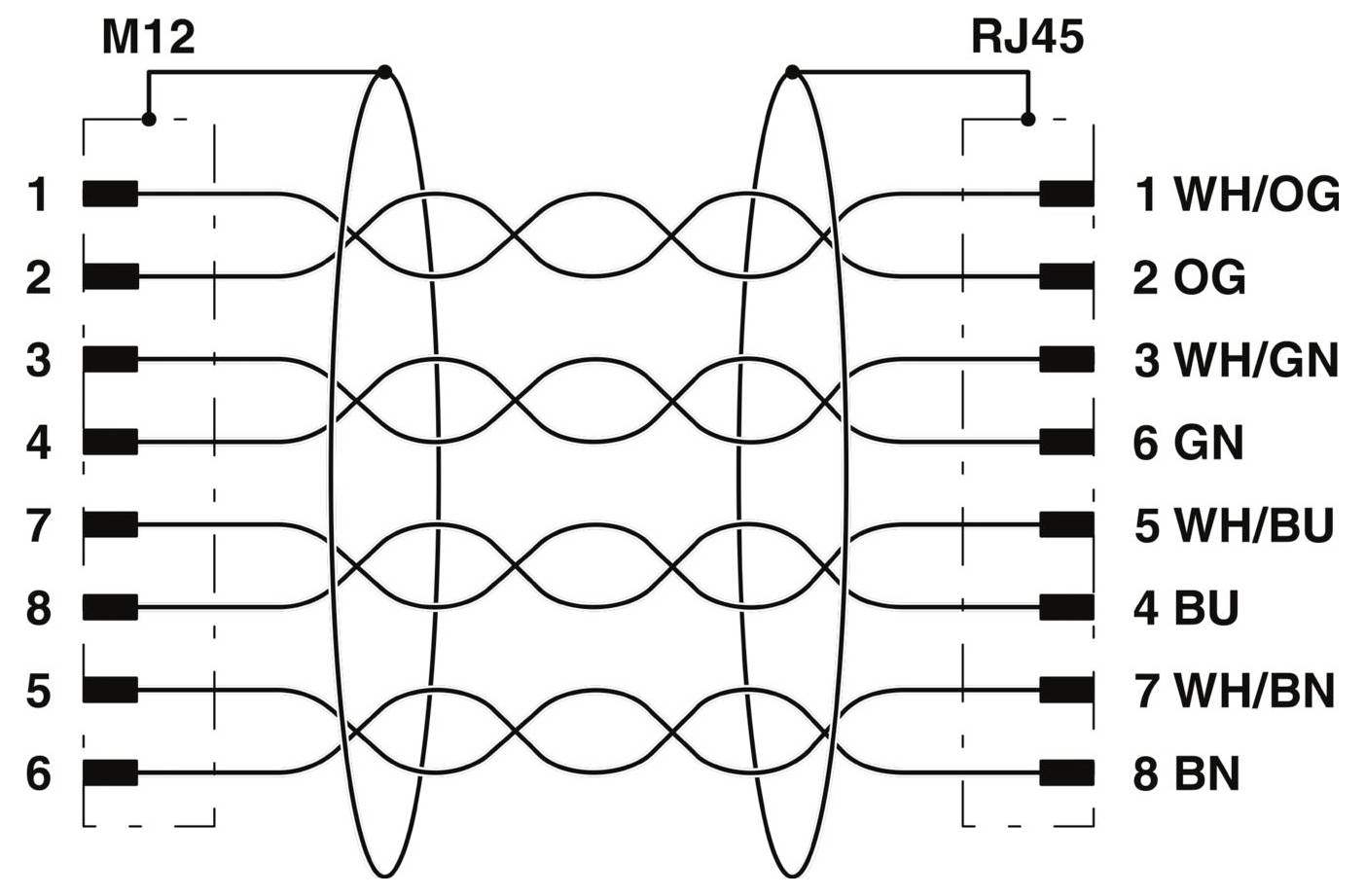

Connection side A

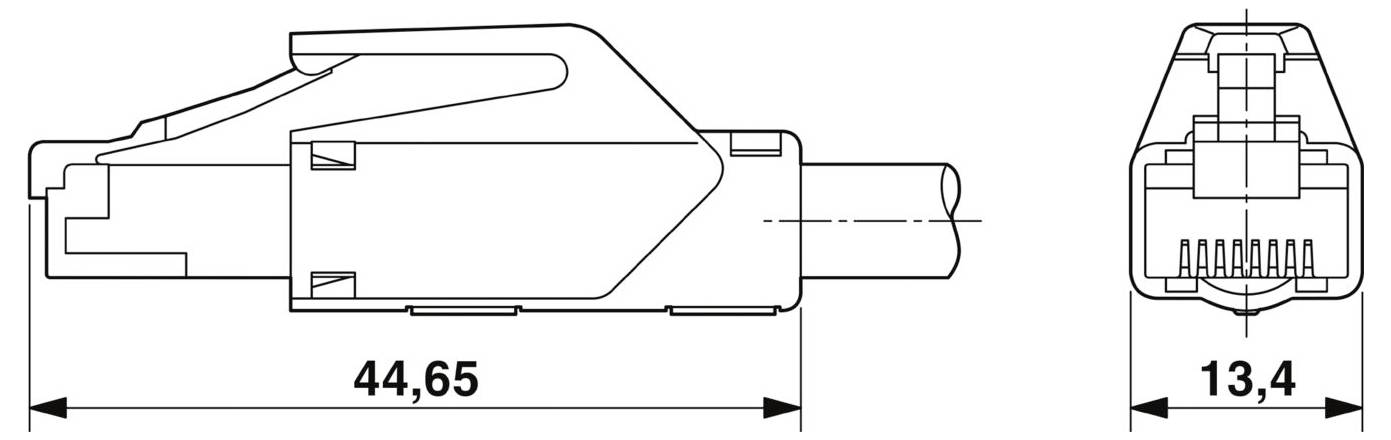

RJ45 plug
Connection side B

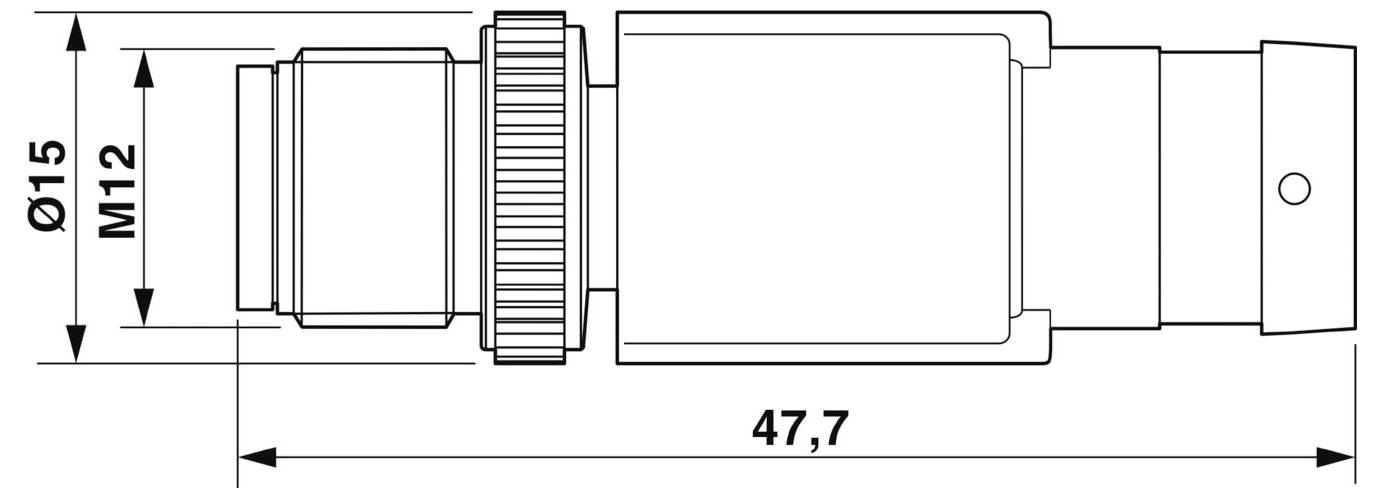

M12 Speedcon
Technical specifications
- Packaging type
Piece
- Type
NBC-MSX/10,0-94F/R4AC SCO
- Product type
Sensor/actuator cable
- Connector type
Plug
- Connector standard
Sensor connector
- Connection side A
RJ45 plug
- Connection side B
M12 Speedcon
- No. of pins
8
- Cable length
10.00 m
- Jacket material
PUR
- Nominal voltage
48 V AC
- Connection
Plug
- Factory colour
Grey
- Cable colour
Blue
- Coding
X
- Contact material
CuSn
- Contact surface
Ni/Au
IP65
- Manufacturer part #
1407474
- Content
1 pc(s)
TRUE
Multi-core
48 V
10 m
TRUE
8
-20-80 °C
-40-80 °C
IP65
M12
Other
FALSE
0.5 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1827540 Phoenix Contact 1407474 Sensor/actuator cable Plug 10.00 m No. of pins (RJ): 8 1 pc(s) Piece
Description
Network cable NBC-MSX/10.0-94 F/R4 AC SCO
