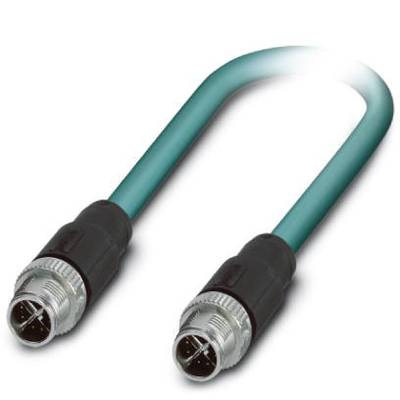

Buy Phoenix Contact 1407483 Sensor/actuator connector M12 SPEEDCON Plug, straight, Plug, straight 1.00 m No. of pins (RJ): 8

Technical specifications

Signal type/category: Ethernet CAT6A, 10 GBit/s.
Standards/regulations: M12 connector IEC 61076-2-109
Insulation resistance ≥ 100 MΩ
Mating cycles: ≥ 100
Tightening torque: 0.4 Nm
Cable type: Ethernet 10 GBit
Cable type (short code): 94F

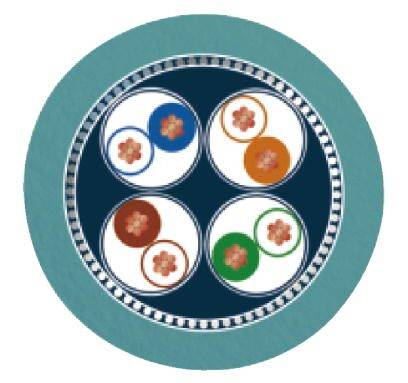

Cable setup: 4x2xAWG26/7; S/FTP
AWG Signal wire 26
Shielding: Braid made of tin-plated copper wires
Outer sheath, color: Water blue RAL 5021
Material conductor: Bare copper wire

Packaging type: Piece

Type: NBC-MSX/ 1,0-94F/MSX SCO

Product type: Sensor/actuator connector

Connector type: Plug, straight
Plug, straight

Connector standard: Sensor connector

Connection side A: M12 plug, straight

Connection side B: M12 plug, straight

No. of pins: 8

Cable length: 1.00 m

Jacket material: PUR

Nominal voltage: 48 V AC

Nominal current: 0.5 A

Nominal current - rounded value: 500 mA

Connector cross-section (max.): 0.14 mm²

Outside Ø: 6.4 mm

Connection: Plug

Factory colour: Black

Thread type connection side: M12 SPEEDCON

Thread type (wiring and installation): M12 SPEEDCON

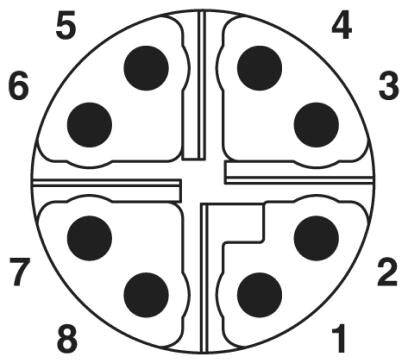

Coding: X

Contact material: CuSn

Contact surface: Ni/Au

: IP65

Features: Shielded

Min. temperature: -25 °C

Max. temperature: +90 °C

Seal type: Speedcon

Manufacturer part #: 1407483

Content: 1 pc(s)

Cable diameter (details): 6.4 mm

UKCA: yes
