Buy Phoenix Contact 1411071 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 1 pc(s) Piece

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

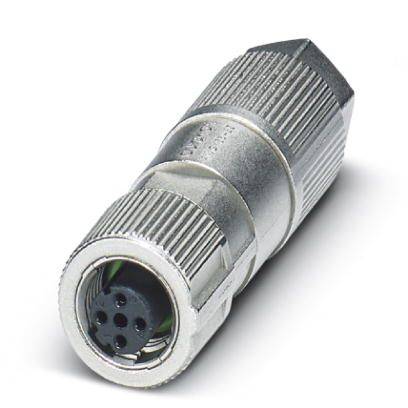

A silver, cylindrical plug with a ribbed surface and five metal pins arranged in a circular pattern.

Image similar

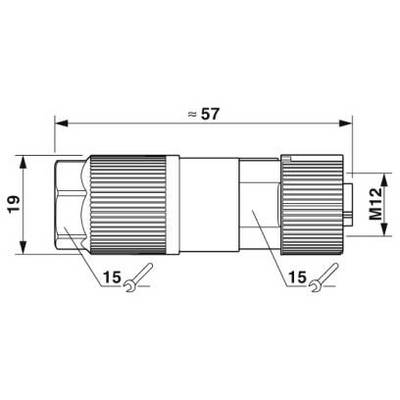

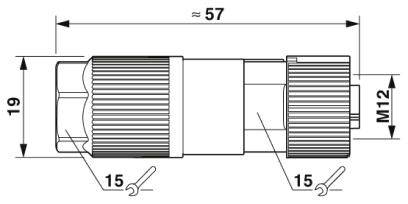

Technical drawing of a cylindrical plug, length 57 mm, width 19 mm, thread M12, markings for 15 mm intervals.

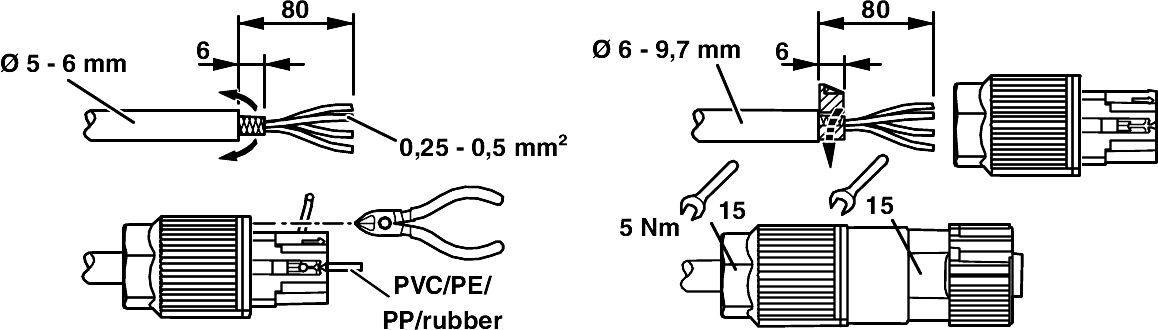

Figure shows installation instructions for cable with connectors. Left: Stripping, wire diameter 0.25-0.5 mm². Right: Assembly, tightening torque 5 Nm.

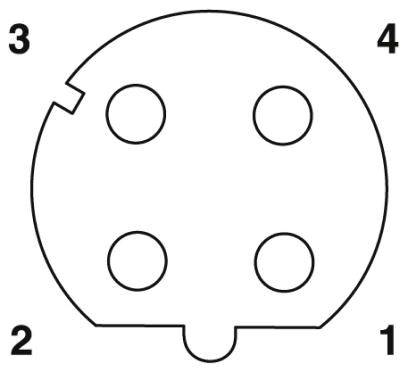

Diagram of a four-pole plug, numbered 1 to 4 clockwise, with orientation notches at positions 2 and 3.

1/4

Image similar

Product type

Sensor/actuator connector

Connector type

Socket, straight

Connector standard

Profinet

Connection side A

M12 socket, straight

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Signal type/category: PROFINET CAT5 (in accordance with IEC 11801), 100 MBit/s.
Standards/regulations: M12-plug connector in accordance with IEC 61076-2-101
Insulation resistance ≥ 100 MΩ
Mating cycles: ≥ 100
Tightening torque: 5 Nm (pressure nut)
Pollution level 3
Flammability class according to UL 94: V0
Overvoltage category II
Material grip body: Die-cast zinc, nickel-plated
Material knurl: Die-cast zinc, nickel-plated
Material seal: NBR

Packaging type: Piece

Type: SACC-FSD-4QO SH PN SCO

Product type: Sensor/actuator connector

Connector type: Socket, straight

Connector standard: Profinet

Connection side A: M12 socket, straight

No. of pins: 4

Nominal voltage: 48 V AC

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.5 mm²

Outside Ø: 18.96288699 mm

Cross-section (sensor/actuator wiring): 0.5 mm²

Connection: Cut & Clip

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: D

Contact material: CuSn

Contact surface: Ni/Au

max. cross section: 0.5 mm²

Min. cross section: 0.25 mm²

: IP65

Features: Shielded

Min. temperature: -40 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 1411071

Content: 1 pc(s)

Cable Ø (max.): 9.7 mm

Cable Ø up to: 5 mm

Cable Ø range: 5 - 9.7 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Type

Connector standard

Nominal current - rounded value

Connection side A

Connector type

Seal type

No. of pins

Nominal voltage

Thread type connection side

Phoenix Contact 1411071 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 1 pc(s) Piece

Item no:2209180

This article

SACC-FSD-4QO SH PN SCO

Profinet

4 A

M12 socket, straight

Socket, straight

Screw-on

48 V AC

M12

Phoenix Contact 1411044 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 8 1 pc(s) Piece

Item no:2140987

SACC-MSX-8QO SH PN SCO

500 mA

M12 plug, straight

Plug, straight

Screw-on

48 V AC

M12

Phoenix Contact 1411066 Sensor/actuator connector Plug, straight No. of pins (RJ): 4 1 pc(s) Piece

Item no:2141008

SACC-MSD-4QO SH ETH SCO

Ethernet

4 A

M12 plug, straight

Plug, straight

48 V AC

Phoenix Contact 1411043 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 8 1 pc(s) Piece

Item no:2141023

SACC-MSX-8QO SH ETH SCO

Ethernet

500 mA

M12 plug, straight

Plug, straight

Screw-on

48 V AC

M12

Phoenix Contact 1411068 Sensor/actuator connector Plug, straight No. of pins (RJ): 4 1 pc(s) Piece

Item no:2141024

SACC-MSD-4QO SH PN SCO

4 A

M12 plug, straight

Plug, straight

Screw-on

48 V AC

Phoenix Contact 1021783 Sensor/actuator connector Plug, straight No. of pins (RJ): 8 1 pc(s)

Item no:2208980

SACC-P12MSX-8CT-CL SH

Profinet

500 mA

M12 plug, straight

Plug, straight

Screw-on

48 V AC

Phoenix Contact 1021784 Sensor/actuator connector Plug, right angle No. of pins (RJ): 8 1 pc(s)

Item no:2208981

SACC-P12MRX-8CT-CL SH

500 mA

M12 plug, right angle

Plug, right angle

Screw-on

48 V AC

Phoenix Contact 1021815 Sensor/actuator connector Plug, straight No. of pins (RJ): 5 1 pc(s) Piece

Item no:2208982

SACC-P12MS-5CT-CM SH

Sensor connector

4 A

M12 plug, straight

Plug, straight

Screw-on

48 V AC

Phoenix Contact 1021816 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 5 1 pc(s) Piece

Item no:2208983

SACC-P12MR-5CT-CM SH

4 A

M12 plug, right angle

Plug, right angle

Screw-on

48 V AC

M12

Phoenix Contact 1021830 Sensor/actuator connector Plug, straight No. of pins (RJ): 4 1 pc(s)

Item no:2208984

SACC-P12MSD-4CT-CM SH PN

4 A

M12 plug, straight

Plug, straight

Screw-on

48 V AC

Documents & Downloads

Datasheet

Datasheet 2209180 Phoenix Contact 1411071 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2209180 Phoenix Contact 1411071 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 1 pc(s) Piece

Description

Safe use in the field thanks to high degrees of protection. Flexible: Plug connector for on-site assembly. Insulation displacement connection: Innovative and time-saving pre-fabrication without stripping the individual wires.

This text is machine translated.
