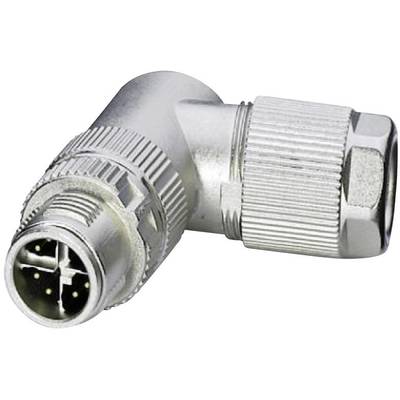

Phoenix Contact 1417443 VS-08-M12MR-10G-P SCO Ethernet Plug, right angle Silver
EAN:
Part number:
Item no:
Product type
Sensor/actuator data cable
Connector type
Plug, right angle
Connector standard
Ethernet
Connection side A
M12 plug, right angle
Connection side B
Customisable
Datasheet (PDF)
19 Piece(s)
Sales and shipping:
Number
Total (€ 37.81 / piece)
€ 46.21
-18 %
€
Technical specifications
- 10 Gbit/s
- Type
VS-08-M12MR-10G-P SCO
- Product type
Sensor/actuator data cable
- Connector type
Plug, right angle
- Connector standard
Ethernet
- Connection side A
M12 plug, right angle
- Connection side B
Customisable
- No. of pins
8P8C
- Nominal voltage
50 V AC
60 V DC
- Nominal current
0.50 A
- Nominal current - rounded value
500 mA
- Connector cross-section (max.)
0.14 mm²
- Connection
Cut & Clip
- Factory colour
Silver
- Thread type connection side
M12
- Coding
X
- Contact material
Copper alloy
- Contact surface
Gold on nickel
- max. cross section
0.14 mm²
IP67
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Manufacturer part #
1417443
- Content
1 pc(s)
- Cable diameter (details)
4 mm
Other
30 V
TRUE
Other
Zinc
Other
85-85 °C
V0
Insulation displacement connection
Nickel
II
3
Straight
0.34-0.34 mm²
FALSE
2 A
100
Documents & Downloads
Datasheet
Datasheet 734313 Phoenix Contact 1417443 VS-08-M12MR-10G-P SCO Ethernet Plug, right angle Silver
User & Safety Instructions
User & Safety Instructions 734313 Phoenix Contact 1417443 VS-08-M12MR-10G-P SCO Ethernet Plug, right angle Silver
