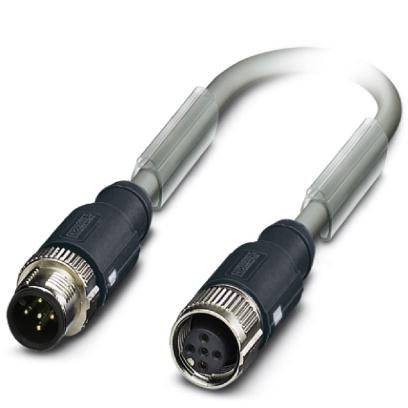

A grey cable with two round connectors at each end, which may be used for data transmission or power supply.

Image similar

A grey cable with two round connectors at each end, which may be used for data transmission or power supply.

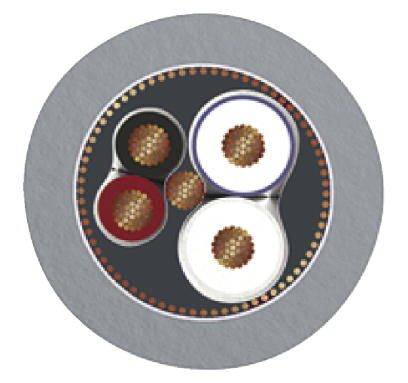

Cross-section of an electrical cable with multiple conductors in different colours, insulated and separated from each other.

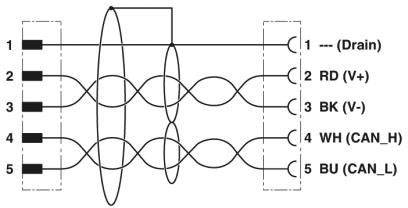

'Diagram of a cable connection with five pins: 1-Drain, 2-RD (V+), 3-BK (V-), 4-WH (CAN_H), 5-BU (CAN_L).'

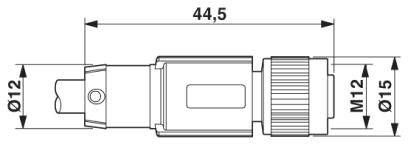

Technical drawing of a plug: Length 44.5 mm, diameter 12 mm at the tip, M12 and 15 mm at the wide end.

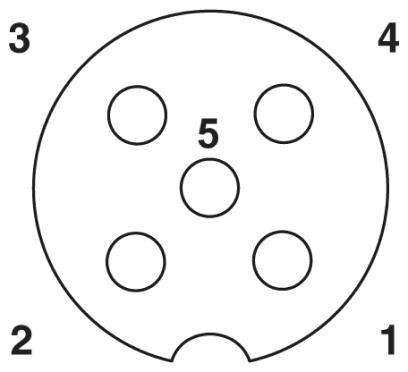

'Diagram of a 5-pin connector with pins 1 to 5 labelled.'

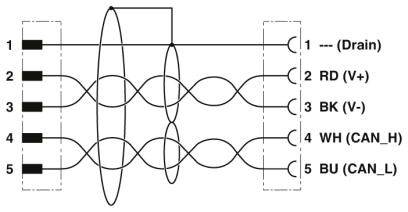

Circuit diagram of an electrical connector with five pins, numbered 1 to 5. Each pin is assigned a function such as 'Drain' or 'CAN_L'.

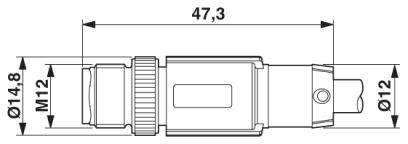

Technical drawing of a cylindrical plug. Total length: 47.3 mm. Diameter: 14.8 mm (M12), front section: 12 mm.

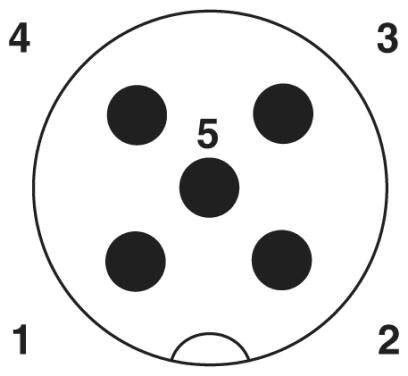

A round electrical connector with five numbered contacts: 1 to 4 at the corners and 5 in the centre.

1/8

Image similar

Product type

Bus terminal

Connector type

Plug, straight

Socket, straight

Connector standard

CANopen-/DeviceNet

Connection side A

M12 plug, straight

Connection side B

M12 socket, straight

Datasheet (PDF)

European union

Phoenix Contact

Unavailable
