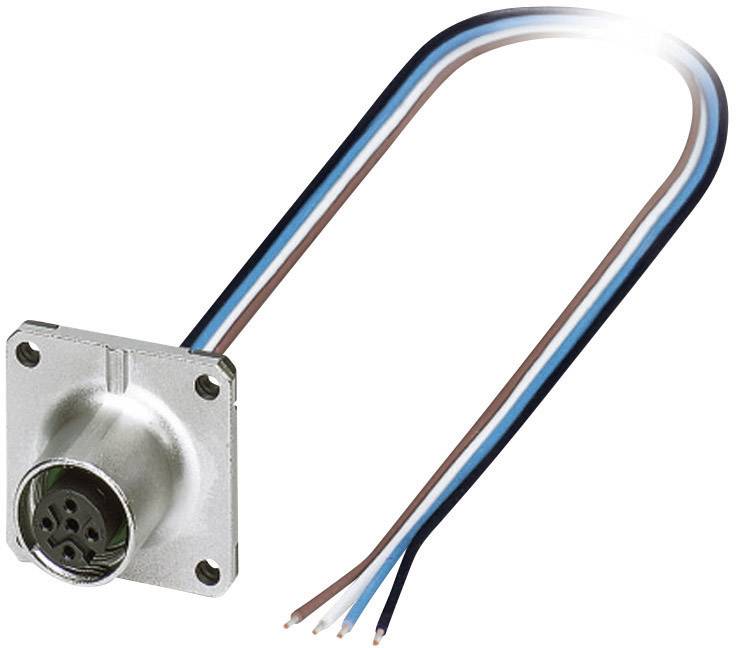

Phoenix Contact 1420003 SACC-SQ-M12FS-4CON-25F/0,5 M12 Sensor / Actuator Build-in Plug Connector
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M12 socket, built-in
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Highlights & Details
Phoenix Contact 1420003 SACC-SQ-M12FS-4CON-25F/0,5 M12 Sensor / Actuator Build-in Plug Connector
- With halogen-free strands
Technical specifications
- Mounting: Square Flange
- Type
SACC-SQ-M12FS-4CON-25F/0,5
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M12 socket, built-in
- No. of pins
4
- Cable length
0.50 m
- Jacket material
TPE
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
1.20 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Open end cable
- Thread type connection side
M12
- Cable colour
Brown
White
Blue
Black
- Coding
A
- Sensor/actuator connectivity fittings
Square barchet front panel fitting
IP67
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Manufacturer part #
1420003
- Content
1 pc(s)
- Contamination level
3
- Connection
TPE-strand 0.5 m
- Temperature range
-25 - +85 °C
Other
250 V
FALSE
Other
Zinc
Other
85-85 °C
V0
Nickel
II
3
Straight
IP67
FALSE
4 A
100
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 744855 Phoenix Contact 1420003 SACC-SQ-M12FS-4CON-25F/0,5 M12 Sensor / Actuator Build-in Plug Connector
User & Safety Instructions
User & Safety Instructions 744855 Phoenix Contact 1420003 SACC-SQ-M12FS-4CON-25F/0,5 M12 Sensor / Actuator Build-in Plug Connector
Description
The M12-square flange is bolted to the front side. The device-side sealing takes place on tightly bordered packing
