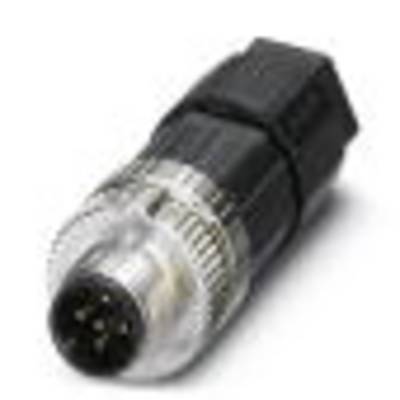

Phoenix Contact 1424649 Sensor/actuator connector M12 No. of pins (RJ): 5 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
No. of pins
5
Nominal voltage
60 V DC
Nominal current
4 A
Thread type connection side
M12
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Type
SACC-M12MS-5PL M
- Product type
Sensor/actuator connector
- No. of pins
5
- Nominal voltage
60 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.75 mm²
- Outside Ø
19 mm
- Cross-section (sensor/actuator wiring)
0.75 mm²
- Connection
Push-in connector
- Factory colour
Multicolour
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Multicolour
- Coding
A
- Contact material
CuSn
- Contact surface
Ni/Au
- max. cross section
0.75 mm²
- Min. cross section
0.08 mm²
IP65
- Max. temperature
85 °C
- Manufacturer part #
1424649
- Content
1 pc(s)
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 8 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1828101 Phoenix Contact 1424649 Sensor/actuator connector M12 No. of pins (RJ): 5 1 pc(s) Piece
Description
Connect easily and without the need for tools with push-in technology. Flexible signal and data cabling. Connect easily and without the need for tools with push-in technology.
