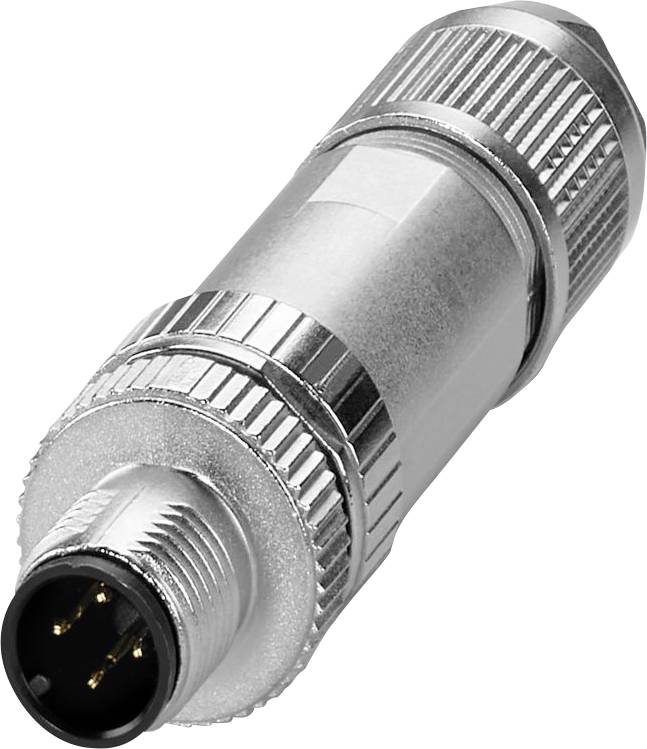

Phoenix Contact 1424666 Connector Total number of pins: 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Total no. of pins
4
Connection
Push-lock spring terminal
Content
1 pc(s)
Nominal current - rounded value
4 A
Datasheet (PDF)
Technical specifications
- Type
SACC-M12MS-4PL SH
- Product type
Connector
- Total no. of pins
4
- Connection
Push-lock spring terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
4 A
- Min. temperature
-40 °C
- Nominal current - rounded value
4 A
- Leading contact (PE)
No
- Contact material
Nickel plated
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Case material
Diecast zinc (Ni-plated)
- No. of contact sizes
4
- Weight
0.0222 kg
- Manufacturer part #
1424666
- Insulation material
UL 94 V0 standard
- Cable Ø range
4 - 8 mm
- Number of pins
4
- (Ø)
19 mm
- max. cross section
0.75 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 0.75 mm²
- Feature
shielded
IP65 (when installed)
- UKCA
yes
