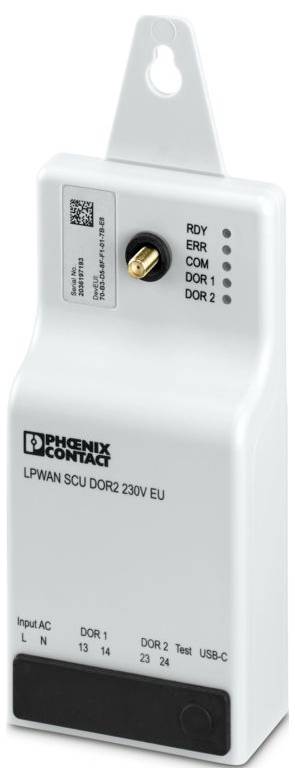

Phoenix Contact 1427695 LPWAN SCU DOR2 230V EU Transmitter module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: Screw terminals with sleeve
- Tightening torque: 0.6 Nm ... 0.8 Nm
- Width: 79.3 mm
- Height: 207.3 mm
- Depth: 37.4 mm
- Colour: Light gray (RAL 7035)
- Ambient conditions: Environmental conditions
- Protection class: IP43
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Mounting type: Wall mounting;mounting rail
- Insulation properties: Insulation properties
- Permissible air humidity (operation): 0 % ... 95% (no condensation)
- Stripped length: 10 mm
- Conductor cross-section flexible min.: 0.2 mm²
- Conductor cross-section flexible max.: 6 mm²
- Conductor cross-section rigid min.: 0.2 mm²
- Conductor cross-section rigid max. 6 mm²
- Frequency range: 867.1 MHz ... 869.525 MHz
- Protection class II (plastic housing)
- Connection type of antenna: SMA (female)
- Supply voltage range: 100 V AC ... 240 V AC ±10 %
- CE CE
- Permissible humidity (storage/transport): 0 % ... 95 %.
- Note for application: Only for industrial use
- Digital: Digital
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Wire cross section AWG min 24
- Conductor cross-section AWG max. 10
- Switching voltage maximum 230 V +10 %
- Transmission Physics: Lora®
- Designation: LoRaWAN® EU 868
- Supply: Supply
- Range: Up to 15 km
- Transmitted power < 14 dBm
- Contact version: Closer
- Basic functionality: Lighting control of street trains via relay
- Functions: Functions
- Contact material AgNi
- Number of outputs: 2
- Naming of output: Relay output
- Power consumption 0.3 W
- Switching current maximum: 10 A (at 230 V AC -20 % ...+15 % )
- Number: 1
- Wireless
- Radio approvals: Europe
- 868 MHz ...
- Radio standard: LoRaWAN®
- Automatic channel selection: ADR
- Hungary;Czech Republic;Hungary;Hungary;Czech Republic;Austria;Bahrain;Bangladesh;Belarus;Belgium;Burma (Myanmar);Bosnia/Herzegovina;Brunei Darussalam;Bulgaria;Cambodia;Croatia;Cyprus;Czech Republic;Denmark;Estonia;Finland;France;Germany;Greece;Hungary;Iran;Italy;Latvia;Lebanon;Liechtenstein;Lithuania;Luxembourg;Macedonia;Malta;Czech Republic;Poland;Slovakia;Czech Republic;Hungary;Hungary;Slovakia;Hungary;Poland;Hungary;Czech Republic
- Number of radio interfaces: 1
- Conformity to EMC guidelines: Testing the immunity to EN 301489-1 Discharge static electricity (ESD) Criteria A, ±4 kV contact discharge, ±8 kV air discharge;Electromagnetic fields criterion A, field strength: 10 V/m ;Fast transients (burst ) criterion A, ±2 kV;Transient overvoltage (surge) criterion A, ±1 kV (symmetrical);Conducted disturbances criterion A, test voltage 10 V;Testing the emission of IEC 55015
- Type
LPWAN SCU DOR2 230V EU
- Product type
Transmitter module
- Manufacturer part #
1427695
- Dim
(L x W x H) 37.4 x 79.3 x 207.3 mm
- Outputs
2
- Operating temperature
-40 °C (min)
- Min. operating temperature
-40 °C
- Width
79.3 mm
- Height
207.3 mm
- Length
37.4 mm
- Max. ambient temperature
80 °C
- Min. ambient temperature
-40 °C
IP43
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3583636 Phoenix Contact 1427695 LPWAN SCU DOR2 230V EU Transmitter module
User & Safety Instructions
User & Safety Instructions 3583636 Phoenix Contact 1427695 LPWAN SCU DOR2 230V EU Transmitter module
Description
SCU (segment control unit) for lighting control using Astro or event calendar entries, 2 independently switchable relay outputs (galvanically isolated, loadable up to 10 A), parameterizable via LoRaWAN® and USB-C, 230 V AC power supply. The device can be used as an alternative to existing round control technology (pin-compatible).
