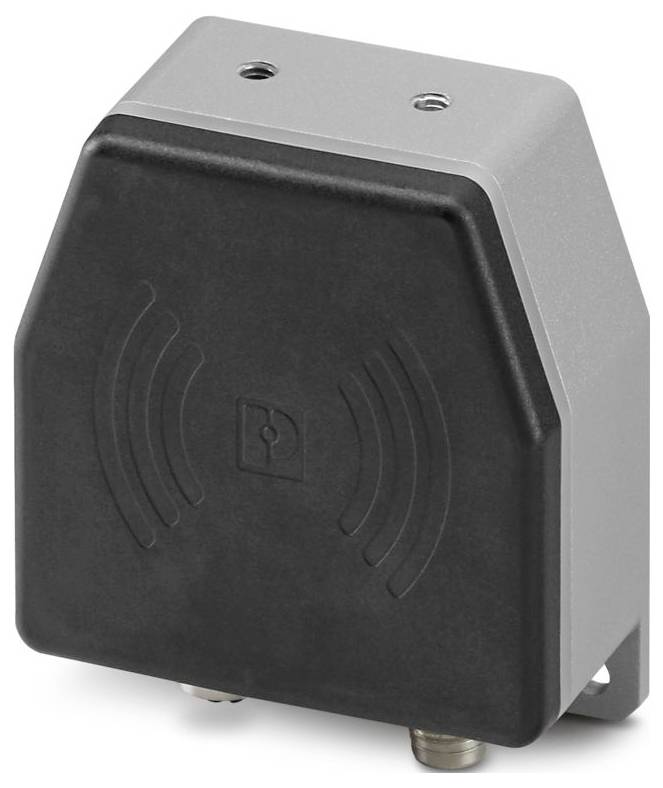

Phoenix Contact 1433041 NEARFI 2000 B Inductive couplers
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: NearFi
- M12 socket, D-coded; Push-Pull quick connection or screw connection
- Width 80 mm
- Height: 86 mm
- Depth: 39 mm
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -20 °C ... 65 °C (observe De-rating)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: 2000 meters
- Standards/regulations EN 55016-2-3
- Note: RED 2014/53/EU
- Mounting type: Wall mounting
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 10 % ... 95 %.
- All mounting positions permitted
- Frequency range: 0.15 MHz ... 80 MHz (test efficiency 3 - asymmetric)
- Transmission speed 100 MBit/s
- Maximum power loss at rated conditions 4.68 W.
- Air pressure (operation): 80 kPa ... 108 kPa (up to 2000 m üNN)
- Radio: Radio
- Transfer length 100 m (twisted-pair, shielded)
- Supply voltage range: 19 V DC ... 30 V DC
- CE CE
- Permissible humidity (storage/transport): 10 % ... 95 %.
- Input: ± 0.5 kV (test sharpness 1 – symmetric);± 1 kV (test efficiency 2 – asymmetric)
- Output: ± 1 kV (test sharpness: 2 - asymmetrical)
- Signal: ± 1 kV (test sharpness: 2 – unbalanced)
- Installation instructions: Observe derating
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Discharge of static electricity: Discharge of static electricity
- Contact discharge ± 4 kV (test efficiency 2)
- Air discharge ± 8 kV (test efficiency 3)
- Note: Class A, industrial application area
- Electromagnetic HF-field: Electromagnetic HF-field
- Fast Transients (Burst): Fast Transients (Burst)
- Conducted interference: Conducted interference
- Voltage: 10 V (80 % amplitude modulation with 1 kHz)
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- Protection: Transient protection, reverse polarity protection
- Emitted interference: Interference
- Supported protocols: Protocol transparent: PROFINET, PROFINET IRT, PROFIsafe, EtherCAT®, Modbus/TCP, Powerlink, TSN,...
- Application: Ethernet
- MTTF: 191 years (SN 29500 standard , temperature 25°C, duty cycle 21 %);110 years (SN 29500 standard , temperature 40°C, duty cycle 34.25 %);53 years (SN 29500 standard, temperature 40 °C, duty cycle 100 %)
- Supply: Supply
- Range: Min. 0 mm;≤ 100 mm (adjustable via DIP switch)
- Center offset: ± 5 mm (No distance between equipment);± 20 mm (with 100 mm distance between equipment)
- Angle offset < 25 °
- Connectable radio modules:1 (remote coupler)
- Colour (housing): Black (RAL 9005)
- Material (enclosure): PBT; Zinc die cast
- Other stability: Resistant to weld spatter; resistant to salt mist according to IEC 60068-2-11 (96 h in 5 % salt mist)
- Vibration resistance according to EN 60068-2-6/IEC 60068-2-6: Vibration (operation): 5g per direction of room, 10 Hz ... 150 Hz, amplitude ±0.34 mm
- Shock according to EN 60068-2-27/IEC 60068-2-27: Shock (operating): 30g , 11 ms duration, semi-sine shock pulse, three shocks, each direction of the room
- Continuous shock according to EN 60068-2-27/IEC 60068-2-27: Continuous shock (operation): 10g, 16 ms duration, semi-sine shock pulse, 1000 shocks, each direction of the room
- Protection class (IP): IP65/IP66 (manufacturer's declaration)
- Protection class (IK): IK06 (shock resistance level)
- Air pressure (storage/transport): 66 kPa ... 108 kPa (up to 3500 m üNN)
- Radio approval Europe: Radio approval Europe
- Field strength 10 V/m
- Surge current load (SURGE): Impulse current load (SURGE)
- Free from substances interfering with paint wetting: VDMA 24364:2018-05
- Typical current consumption 195 mA (at 24 V DC, at 25 ° C)
- Switch-on current: 0.4 A (for 0.2 ms at 24 V DC, without remote coupler)
- Data: Ethernet-interface, 100Base-T(X) according to IEEE 802.3: Data: Ethernet-interface, 100Base-T(X) according to IEEE 802.3
- Note on connection type: Auto negotiation and auto crossing, fast start-up (FSU, < 500 ms), LFPT; bit error rate typical ≤10-12
- Number of channels: 1
- Transfer medium: Copper
- Inductive: Inductive
- Transmitted power < 10 mW (EIRP)
- Delay time ≤ 1 µs (typical)
- Type
NEARFI 2000 B
- Product type
Inductive couplers
- Manufacturer part #
1433041
- Dim
(L x W x H) 39 x 80 x 86 mm
- Width
80 mm
- Height
86 mm
- Length
39 mm
- Max. ambient temperature
65 °C
- Min. ambient temperature
-20 °C
- Depth
39 mm
IP65
- Recess height
86 mm
80 mm
86 mm
39 mm
86 mm
DC
Plug-in connection
TRUE
IP65
FALSE
19-30 V
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3588195 Phoenix Contact 1433041 NEARFI 2000 B Inductive couplers
User & Safety Instructions
User & Safety Instructions 3588195 Phoenix Contact 1433041 NEARFI 2000 B Inductive couplers
Description
NearFi base, real-time contactless Ethernet coupler, 100 Mbit/s, range ≤100 mm, M12 push pull, IP65, combined with NEARFI 2000 R
