Buy Phoenix Contact 1466698 SPP-R-1 TeleCom module 1 pc(s)

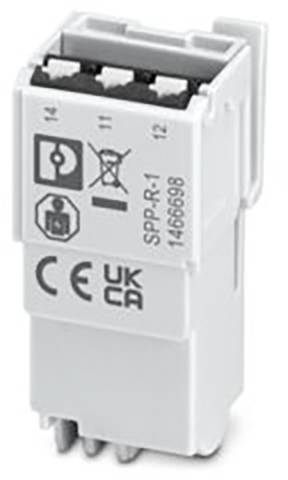

'SPP-R-1' relay module with safety and certification markings, displaying electrical connections and specifications.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product family: VAL-SPP
Built: In module
Display / distance message: Display / remote message
Switching function: Changer
Push-in connection
Conductor cross-section flexible: 0.25 mm² ... 1.5 mm².
Conductor cross-section rigid: 0.25 mm² ... 1.5 mm².
Wire cross-section AWG: 24 ... 16
Width 17.6 mm
Height: 17.2 mm
Depth: 36.6 mm
Division unit 1 TE
Colour: Light gray (RAL 7035)
Flammability class according to UL 94 V-0
Material: housing: PBT
Highest continuous voltage UC 250 V AC
Required maximum backup fuse: 1 A (gG)
Ambient conditions: Environmental conditions
Protection class: IP20C
Ambient temperature (operation): -40 °C ... 85 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Altitude: ≤ 5000 m (operating voltage telecommunication contact ≤ 150 V);≤ 2000 m (operating voltage telecommunication contact ≤ 250 V)
Standards/regulations EN 60947-5-1
Note: 2018
Mounting type: On base element
Insulation properties: Insulation properties
Overvoltage category II
Pollution level 3
Nominal frequency FN 50 Hz (60 Hz)
CTI value of material: 600
Insulating material PBT
Material group: I
Permissible air humidity (operation): 5 % ... 95 %.
Shock (operation): 25g (half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
UL specifications: UL specifications
SPD type: ACC
Naming of connection: Remote fault signaling contact
Operating voltage 250 V AC
Stripped length: 8 mm
Remote defect signaling contact: Defect signaling contact
Short-circuit resistance ISCCR 100 A
UL Display / Telecontrol: UL Display / remote indication
Operating current AC: 5 mA AC ... 1 A AC
Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 1.5 mm² (stripping length 8 mm)
Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 0.75 mm² (stripping length 8 mm)
Insulation type: The product has double / reinforced insulation between the main and auxiliary circuits.
Ambient temperature (mounting): -5 °C ... 50 °C
OPERATING VOLTAGE AC: 5 V AC ... 250 V AC (≤ 2000 m (amsl) at pollution level 2);5 V AC ... 150 V AC (≤ 5000 m (amsl))
OPERATING VOLTAGE DC 30 V DC
Operating current DC 200 mA DC
