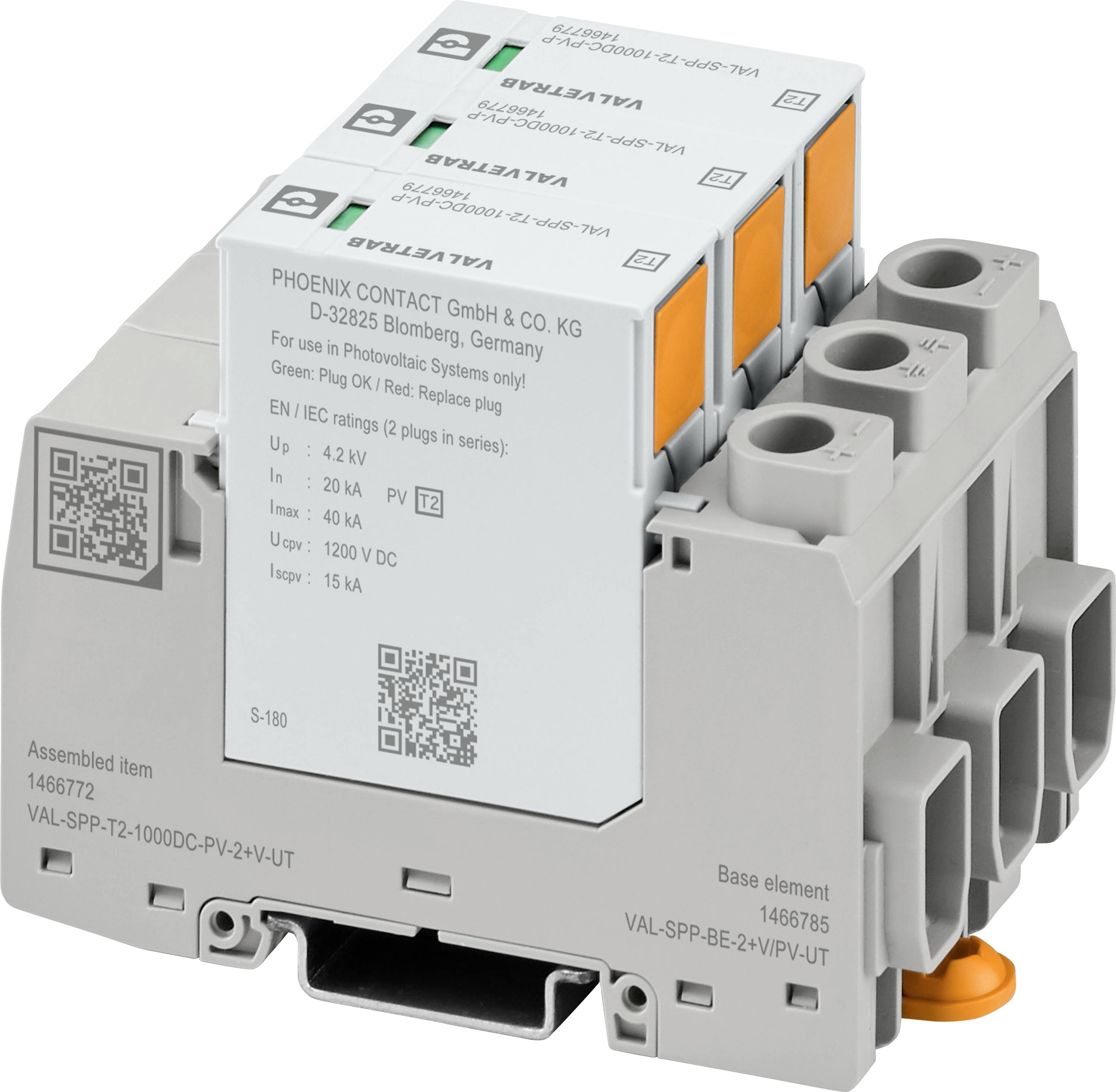

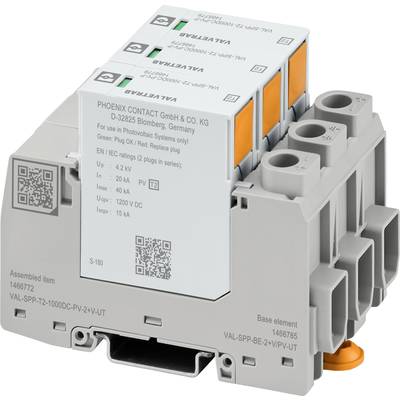

Phoenix Contact 1466772 VAL-SPP-T2-1000DC-PV-2+V-UT Surge arrester Surge protection for: Switchboards 40 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Product type: PV arrester
- IEC-TEST CLASS PV II, PV T2
- EN type T2
- Power supply system DC
- Model: Two-part rail module can be plugged
- Number of poles: 3
- Mounting location: Interior
- Location: The internal separator
- Accessibility: Accessible
- Port configuration: Y-configuration
- SPD failure behavior: OCFM (separation fault behavior)
- Message Surge Protection: Optical
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
40 kA
- Pick-up time (details)
≤ 25 ns
- Operating temperature
- 40 - 85 °C
IP20
- Manufacturer part #
1466772
- Factory colour
Grey
Grey-white (RAL 7035)
- Dim
(W x H x D) 53.4 x 96.6 x 71.5 mm
- Width
53.4 mm
- Height
96.6 mm
- Depth
71.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3306575 Phoenix Contact 1466772 VAL-SPP-T2-1000DC-PV-2+V-UT Surge arrester Surge protection for: Switchboards 40 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306575 Phoenix Contact 1466772 VAL-SPP-T2-1000DC-PV-2+V-UT Surge arrester Surge protection for: Switchboards 40 kA 1 pc(s)
Description
Surge protection with status display for analogue and digital telecommunication interfaces (VDSL up to 250 MBit/s, G.fast up to 1.5 GBit/s) in a surface-mounted casing. Alternatively snap-on
On rail. Integrated overload protection (Power-cross). RJ45 (RJ12) and push-in connections.
Surge suppressor, acc Type 2 / Class II, for 2-pin insulated and earthed PV-direct voltage systems 1000 V DC, for rail mounting, 3-pin base element, three pluggable temperature-monitored protective elements, status message at each plug.
Your advantages
• Easy installation in cupboards and on the wall by screw fixing and snapping on a mounting rail
• Precise function monitoring, with status display on the device
• No restriction on data transmission even at high speeds
• Tests conducted by Deutsche Telekom confirm the compatibility with VDSL, vectoring VDSL, super-vectoring VDSL (SVVDSL) and G.fast
• Safe response in the event of overload (Power-cross) through integrated cut-off mechanism and electronic current limiter
This text is machine translated.
On rail. Integrated overload protection (Power-cross). RJ45 (RJ12) and push-in connections.
Surge suppressor, acc Type 2 / Class II, for 2-pin insulated and earthed PV-direct voltage systems 1000 V DC, for rail mounting, 3-pin base element, three pluggable temperature-monitored protective elements, status message at each plug.
Your advantages
• Easy installation in cupboards and on the wall by screw fixing and snapping on a mounting rail
• Precise function monitoring, with status display on the device
• No restriction on data transmission even at high speeds
• Tests conducted by Deutsche Telekom confirm the compatibility with VDSL, vectoring VDSL, super-vectoring VDSL (SVVDSL) and G.fast
• Safe response in the event of overload (Power-cross) through integrated cut-off mechanism and electronic current limiter
This text is machine translated.
