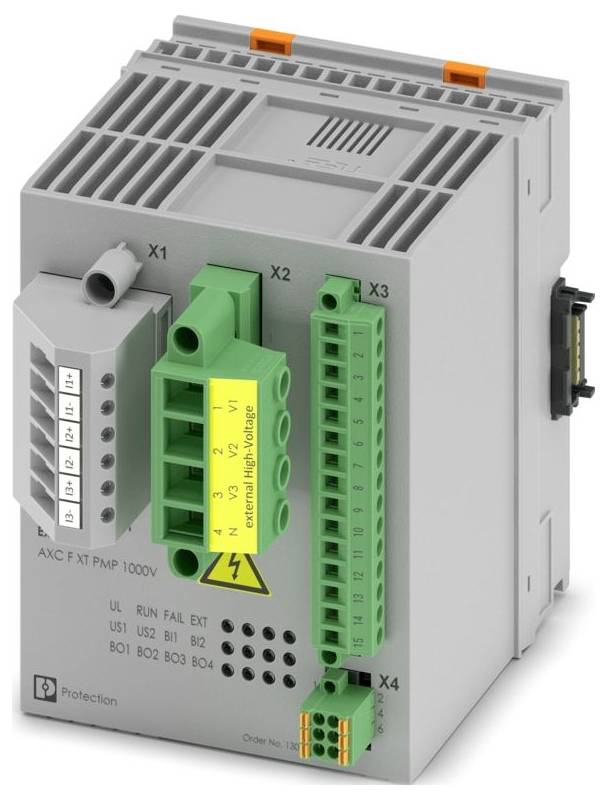

Phoenix Contact 1510810 AXC F XT PMP 1000V AC Function module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: PLCnext Control Extension
- Modular design
- Width 100 mm
- Height: 123 mm
- Depth: 140 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): - 25 °C ... 60 °C
- Ambient temperature (storage/transport): - 40 °C ... 85 °C
- Mounting type: Rail mounting
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Mounting position: Wall mounting on horizontal or vertical mounting rail
- Supply voltage range: 19.2 V DC ... 30 V DC
- Permissible humidity (storage/transport): Max. 95% (no condensation)
- Note for application: Only for industrial use
- Current consumption: Max. 210 mA DC
- Installation instructions: Observe derating
- Note on connection type BO0 (watchdog relay)
- Description of the output: Digital output
- Suitable mounting rail type: Rail: 35 mm
- Number of outputs: 5
- Naming Input: BI1 ... BI-2
- Naming output: BO0 ... BO4
- Description of the input: Digital input
- Number of inputs: 3
- Note on dimensions: The depth applies when using a TH 35-7.5 mounting rail (according to EN 60715).
- Analogue::: Analogue:
- Common-mode voltage range signal - ground: 380 V AC ... 998 V AC (50/60 Hz, nominal voltage)
- Digital: Digital:
- Input voltage range "0" signal: 0 V DC ... 5 V/DC
- Input voltage range "1" signal: 14.5 V DC ... 30 V DC
- Input filter time: Up to 30 ms (adjustable)
- Supply: Module electronics: Supply: Module electronics
- Supply voltage + 24 VDC
- Product type
Function module
- Type
AXC F XT PMP 1000V AC
- No. of digital inputs (max.)
3
- No. of inputs (max.)
3
- No. of outputs (max.)
5
- No. of relay outputs (max.)
1
- Operating voltage
24 V DC
- Height
123 mm
- Length
140 mm
- Width
100 mm
IP20
- Dim
(L x W x H) 140 x 100 x 123 mm
- Manufacturer part #
1510810
- Type
modular
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
60 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3569076 Phoenix Contact 1510810 AXC F XT PMP 1000V AC Function module 24 V DC
User & Safety Instructions
User & Safety Instructions 3569076 Phoenix Contact 1510810 AXC F XT PMP 1000V AC Function module 24 V DC
Description
Expansion module (Power measurement protection) that can be stacked on the left, for connection to a PLCnext controller of the type AXC F 2152. The PMP-APP is available as a download for connection to the controller in the plcnextstore.
This text is machine translated.
