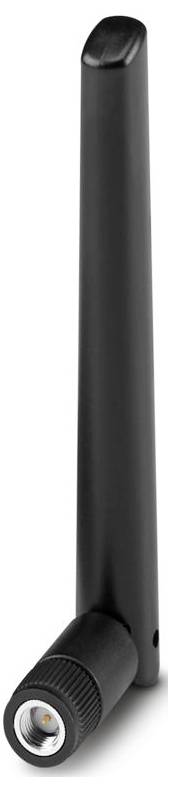

Phoenix Contact 1565400 ANT-OMNI-0671-03 Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type of connection: SMA (male)
- Height: 123 mm
- Ambient conditions: Environmental conditions
- Protection class IP67
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Mounting type: Direct mounting
- Permissible air humidity (operation): 20 % ... 95 %.
- Frequency range: 617 MHz ... 960 MHz;1.71 GHz ... 2.7 GHz;5.15 GHz ... 7.125 GHz
- Stem wave ratio VSWR in the 50-Ω-system: ≤ 4.50 (617 MHz ... 960 MHz);≤ 3.50 (1.7 GHz ... 2.7 GHz);≤ 3.50 (5.15 GHz ... 5.25 GHz);≤ 3.50 (5.25 GHz ... 5.35 GHz);≤ 3.50 (5.47 GHz ... 5.725 GHz);≤ 3.50 (5.725 GHz ... 5.85 GHz);≤ 5.00 (5.85 GHz ... 5.895 GHz);≤ 5.00 (5.925 GHz ... 6.425 GHz);≤ 5.00 (6.425 GHz ... 6.525 GHz);≤ 5.00 (6.525 GHz ... 6.875 GHz);≤ 5.00 (6.875 GHz ... 7.125 GHz
- Diameter 13 mm
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Special features: Monopol antenna
- Impedance 50 Ω
- Gain: 1.12 dBi (617 MHz ... 960 MHz);2.16 dBi (1.7 GHz ... 2.7 GHz);1.89 dBi (5.15 GHz ... 5.25 GHz);1.91 dBi (5.25 GHz ... 5.35 GHz);2.11 dBi (5.47 GHz ... 5.725 GHz);2.09 dBi (5.725 GHz ... 5.85 GHz);2.01 dBi (5.85 GHz ... 5.895 GHz);2.02 dBi (5.925 GHz ... 6.425 GHz);1.58 dBi (6.425 GHz ... 6.525 GHz);1.91 dBi (6.525 GHz ... 6.875 GHz);2.05 dBi (6.875 GHz ... 7.125 GHz
- Polarisation: Vertical
- Maximum power 1.00 W.
- Radiation characteristics: Unidirectional
- Material (radom): Plastic
- Type
ANT-OMNI-0671-03
- Product type
Antenna
- Manufacturer part #
1565400
- Dim
(L x W x H) 123 x 13 x 123 mm
- Operating temperature
-40 °C (min)
- Min. operating temperature
-40 °C
- Width
13 mm
- Height
123 mm
- Length
123 mm
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Depth
13 mm
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3569844 Phoenix Contact 1565400 ANT-OMNI-0671-03 Antenna
User & Safety Instructions
User & Safety Instructions 3569844 Phoenix Contact 1565400 ANT-OMNI-0671-03 Antenna
Description
Multi-band omnidirectional antenna for an externally invisible installation in plastic control cabinets, frequency band: 0.6 GHz ... 7.1 GHz, gain: 1 dBi .... 2 dBi, connection: SMA (male), antenna connector with 90° angled joint
