Buy Phoenix Contact 1605532 SF-5ES1N8A80DU Silver

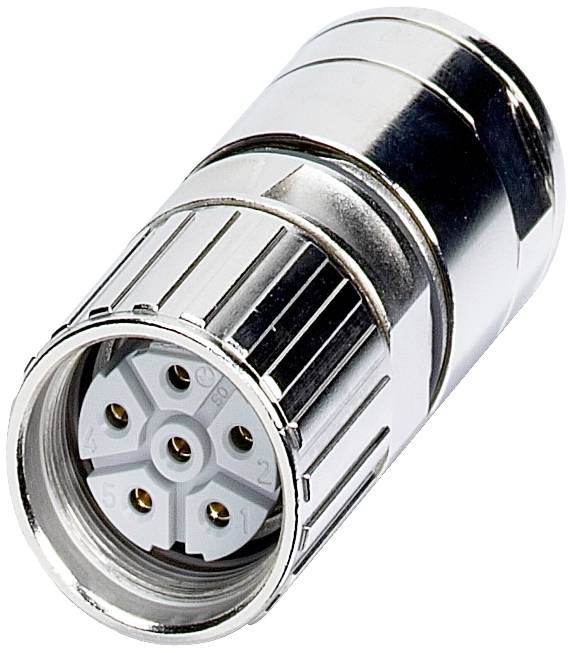

Connector with a metallic housing and five golden contact pins for electronic connections.

Connector type

Socket, straight

Total no. of pins

+ PE

Manufacturer part #

1605532

Factory colour

Silver

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

19 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€ 36.13

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Connector type: Socket, straight

Total no. of pins: + PE

Manufacturer part #: 1605532

Factory colour: Silver

Content: 1 pc(s)

Core diameter: 7.5 - 14 mm

: IP67

Type: SF-5ES1N8A80DU

Leading contact (PE): Yes

Type: Cable connector socket

Contamination level: 3

Pins: 5+PE

Connection: Crimp

Temperature range: -20 - 125 °C

Documents & Downloads

Datasheet

Datasheet 733265 Phoenix Contact 1605532 SF-5ES1N8A80DU Silver

User & Safety Instructions

User & Safety Instructions 733265 Phoenix Contact 1605532 SF-5ES1N8A80DU Silver

Description

P30, M23 Power Connector for higher transfer services and conductor cross-sections.
Electrical services up to 250/630 V at 9/30 A are transferable. The crimp contacts are into the side of the contact carrier einclipsbar and enable short assembly times. The rest of the schirmgeflechts is done
Directly at the housing via a 360° contact, regardless of the cable diameter. The cable connectors and cable with cable sealing rings for different wire diameters.
· Short design: for connection-Ø up to 2.5 mm² and max. cable diameter of 14 mm, shielded.
