Buy Phoenix Contact 1605591 SF-7EP1N8AWK00 Silver

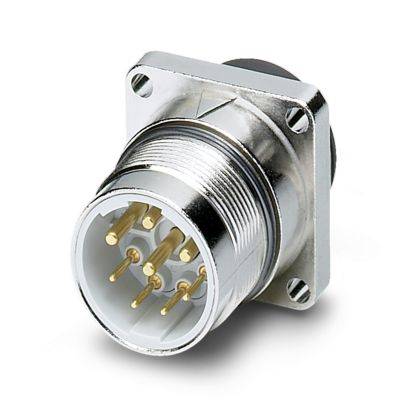

A cylindrical, metallic connector with multiple gold-plated contact pins, mounted on a square base.

Packaging type

Piece

Mounting type

Snap-in

Connector type

Plug, mount

Connection

Crimp

Case material

Silver

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 12.60 / piece)

€ 17.64

-29 %

€ 12.60

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Mounting type: Snap-in

Connector type: Plug, mount

Connection: Crimp

Case material: Silver

Total no. of pins: + PE

Manufacturer part #: 1605591

Factory colour: Silver

Content: 1 pc(s)

Core diameter: 14 mm

: IP67

Features: Short type

Type: SF-7EP1N8AWK00

Leading contact (PE): Yes

Type: Connector pin straight

Contamination level: 3

Pins: 4+3+PE

Connection: Crimp

Temperature range: -20 - 125 °C

Documents & Downloads

Datasheet

Datasheet 733480 Phoenix Contact 1605591 SF-7EP1N8AWK00 Silver

User & Safety Instructions

User & Safety Instructions 733480 Phoenix Contact 1605591 SF-7EP1N8AWK00 Silver

Description

P30, M23 Power Connector for higher transfer services and conductor cross-sections.
Electrical services up to 250/630 V at 9/30 A are transferable. The crimp contacts are into the side of the contact carrier einclipsbar and enable short assembly times. The rest of the schirmgeflechts is done
Directly at the housing via a 360° contact, regardless of the cable diameter. The cable connectors and cable with cable sealing rings for different wire diameters.
· Short design: for connection-Ø up to 2.5 mm² and max. cable diameter of 14 mm, shielded.

This text is machine translated.
