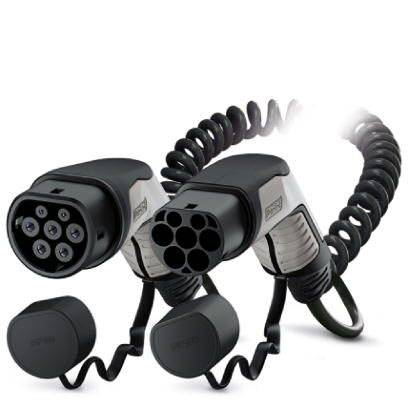

Two black and silver electric vehicle charging plugs with a spiral cable and cover pointing downwards.

Two black and silver electric vehicle charging plugs with a spiral cable and cover pointing downwards.

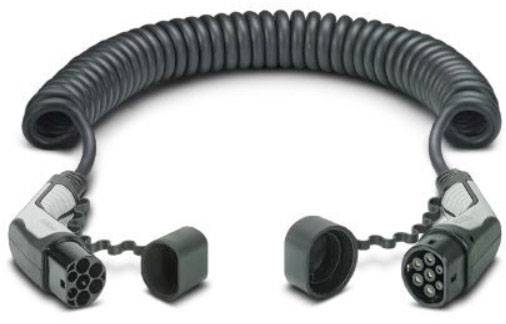

A spiral-shaped charging cable for electric vehicles with two different connectors at the ends.

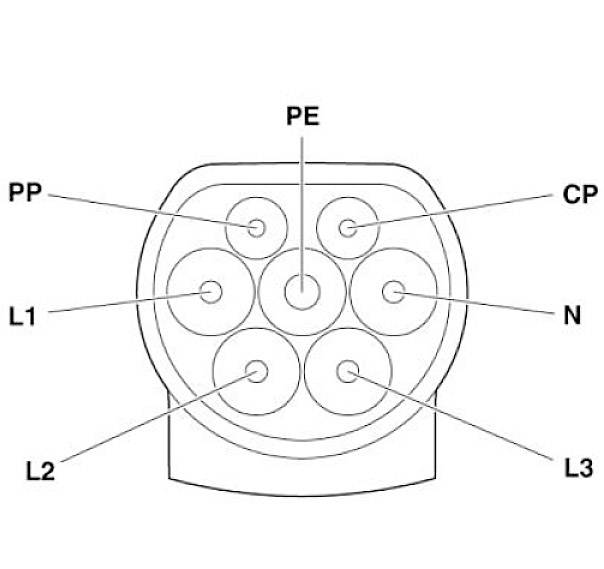

Socket schematic diagram with seven contacts, labelled as PE, PP, CP, N, L1, L2, L3, showing electrical connections.

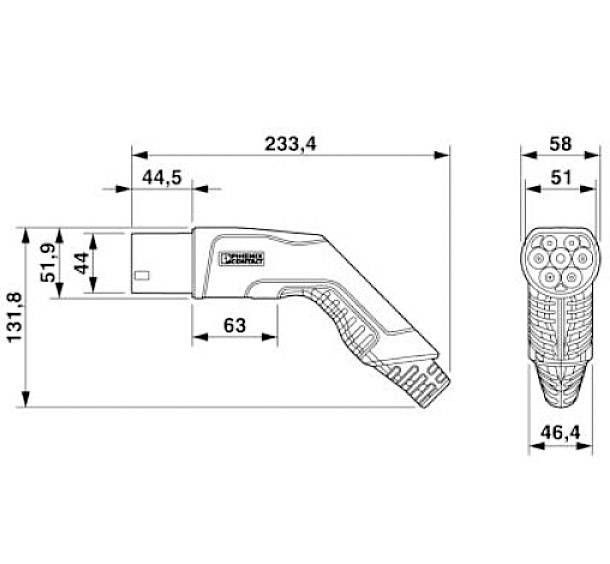

Figure of a technical diagram of a plug with dimensions in millimetres. Primary dimension: 233.4 mm length, 51.9 mm height.

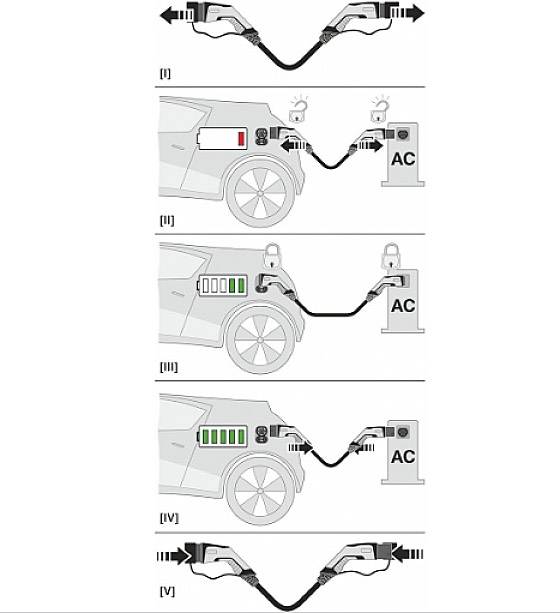

'Illustration of an electric vehicle charging process: Steps I to V show cable connection, charging status, and disconnection.'

Image of an electric car connected to an AC charging point. The cable links the vehicle's charging port to the station.

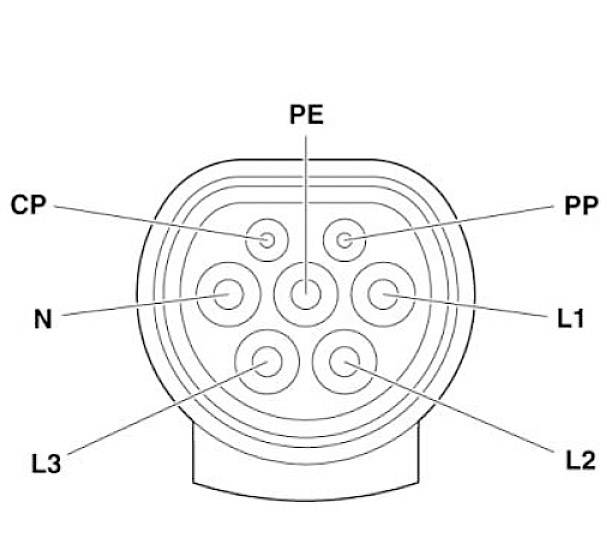

'Diagram of a Type 2 electric vehicle connector with labels: PE, PP, L1, L2, L3, N, CP.'

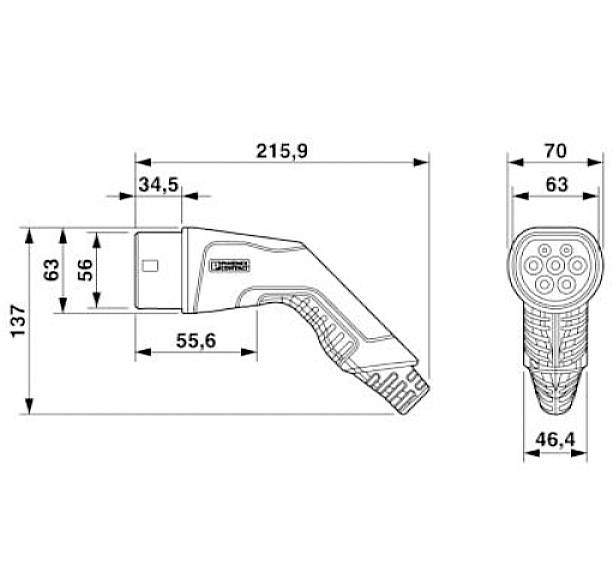

Technical drawing of an electric charging plug with dimensions: Length 215.9 mm, Width 63 mm. Shows form and connection details.

1/8

Phoenix Contact

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: eMobility charging cable

Type A: Type 2

Type B: Type 2

No. of phases: 3-phase

Type: Plug/plug 3phasig 20 A/ spiral cable

Charging mode: Mode 3

Cable length: 4 m

Core layout: 3x6mm² + 1x0,5mm²

Nominal voltage: 230 V

Nominal current: 20 A

Nominal current - rounded value: 20 A

Certification marks: IEC 62196-2

Min. temperature: -30 °C

Max. temperature: +50 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2236748 Phoenix Contact 1627135 eMobility charging cable 4 m

User & Safety Instructions

User & Safety Instructions 2236748 Phoenix Contact 1627135 eMobility charging cable 4 m

Description

Suitable for charging stations, electric and plug-in hybrid vehicles. According to IEC 62196-2 charging cable with vehicle clutch. Charge mode: Mode 3.

This text is machine translated.

Features

Outer sheath made of polyurethane (PUR).

Hints

Special order, no right of withdrawal.
