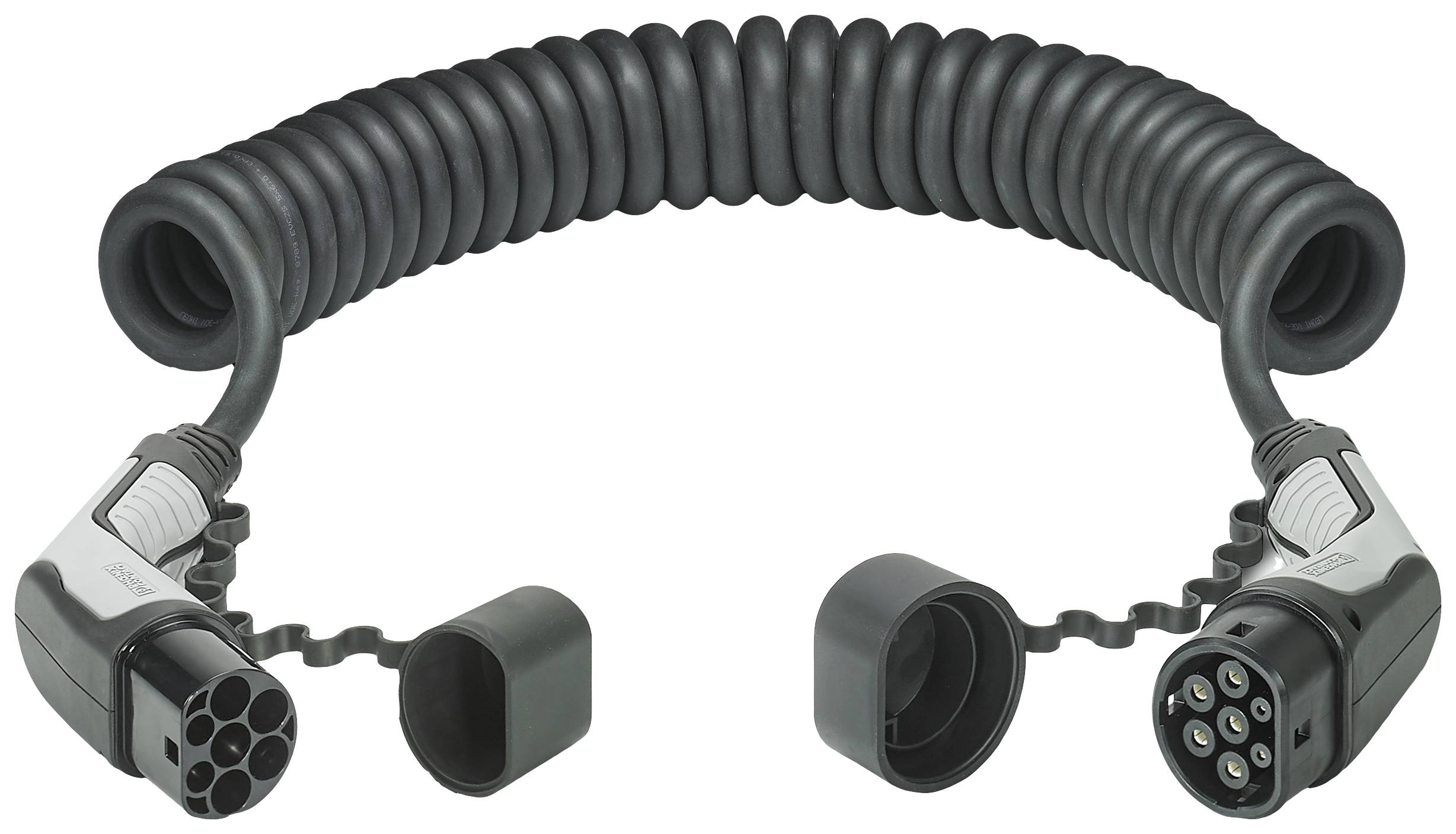

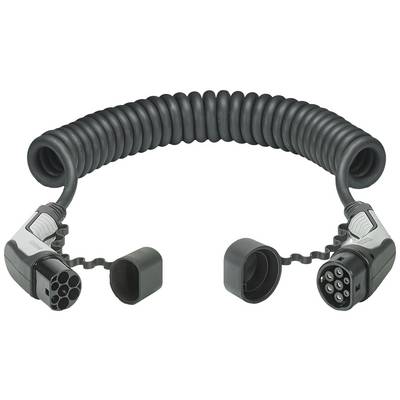

Phoenix Contact 1627136 eMobility charging cable 4 m longitudinally watertight
EAN:
Part number:
Item no:
Datasheet (PDF)
AC charging cable
Highlights & Details
- Complete product rangeComfortable handling through ergonomic design – triple excellentLongitudinal water resistance protects against water ingressDeveloped and produced according to the automotive standard IATF 16949 and ISO 9001Tested according to automotive standards LV124, LV214 and LV215-2Tested according to EV Ready 37 requirementsLaser marked plug face according to DIN EN 17186
Technical specifications
- Product type
eMobility charging cable
- Type A
Type 2
- No. of phases
3-phase
- Type
C-Line black / gray
- Charging mode
Mode 3
- Cable length
4 m
- Cable features
longitudinally watertight
- Core layout
5 x 6.0 mm² + 1 x 0.5 mm² (prEN 50620 / DIN EN 50620 Class 5)
- Nominal voltage
480 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP44
IP54
- Certification marks
IEC 62196-2
- Min. temperature
-30 °C
- Max. temperature
+50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2530745 Phoenix Contact 1627136 eMobility charging cable 4 m longitudinally watertight
User & Safety Instructions
User & Safety Instructions 2530745 Phoenix Contact 1627136 eMobility charging cable 4 m longitudinally watertight
Description
Mobile AC charging cable with vehicle charging plug and infrastructure charging plug for charging with alternating current (AC) of electric vehicles (EV) with type 2 vehicle inlets, compatible with type 2 infrastructure charging sockets at charging stations for electric mobility (EVSE)
