Phoenix Contact 1627760 eMobility charging cable 6 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Casing color: Black
- Color plug face: Black
- Color grip area: Gray
- Material casing: Plastic
- Material grip range: Soft plastic
- Material plug face: Plastic
- Contact material surface: AG
- outer sheathing black
- Protective cap color: Black
- Protective cap material: Soft plastic
- Outer sheath, material: TPE-U

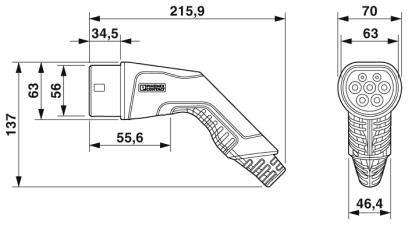

- Vehicle charging plug width 70 mm
- Vehicle charging plug height 137 mm
- Vehicle charging plug depth: 215.9 mm
- Ambient temperature (storage/transport): -40 °C - +80 °C.
- Maximum charging power: 8 kW

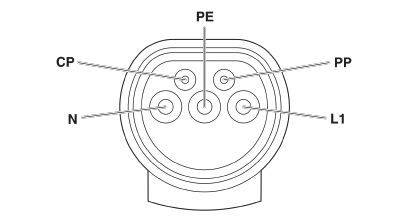

- Number of power contacts: 3 (L1, N, PE)
- Number of signal contacts: 2 (CP, PP)
- Signal contacts Rated current 2 A.
- Signal contacts Rated voltage 30 V/AC
- Resistance coding 220 Ω (between PE and PP)
- Mating cycles> 10000
- Insertion force< 100 N.
- Force 100< N.
- Minimum bending radius 192 mm (15 x diameter)
- Cable type: Straight
- External diameter of the cable: 12.8 mm ±0.4 mm
- Cable setup: 3 x 6 mm² + 1 x 0.5 mm²
- Cable resistance< 0.00798 Ω/m
- Product type
eMobility charging cable
- Type A
Type 2
- Type B
Open cable ends
- No. of phases
1-phase
- Type
C-Line black / gray
- Charging mode
Mode 3
- Cable length
6 m
- Nominal voltage
250 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP44
IP54
- Min. temperature
-30 °C
- Max. temperature
+50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209269 Phoenix Contact 1627760 eMobility charging cable 6 m
Datasheet 2209269 Phoenix Contact 1627760 eMobility charging cable 6 m
User & Safety Instructions
User & Safety Instructions 2209269 Phoenix Contact 1627760 eMobility charging cable 6 m
Description
Silver-plated surface for power and signal contacts. Certified according to IATF 16949:2016 and ISO 9001:2015.
