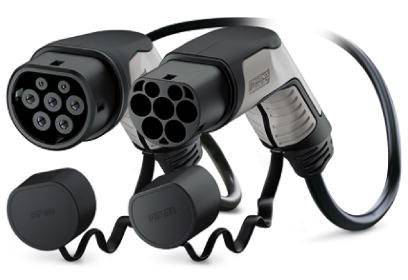

Two electric vehicle charging socket views side by side, with removable covers, show different connection configurations.

Image similar

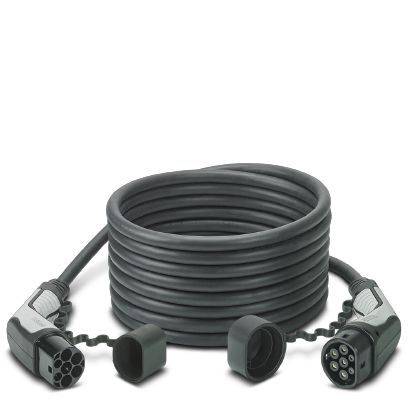

A long, black charging cable for electric vehicles with two plugs at the ends, coiled and intended for charging between the vehicle and charging point.

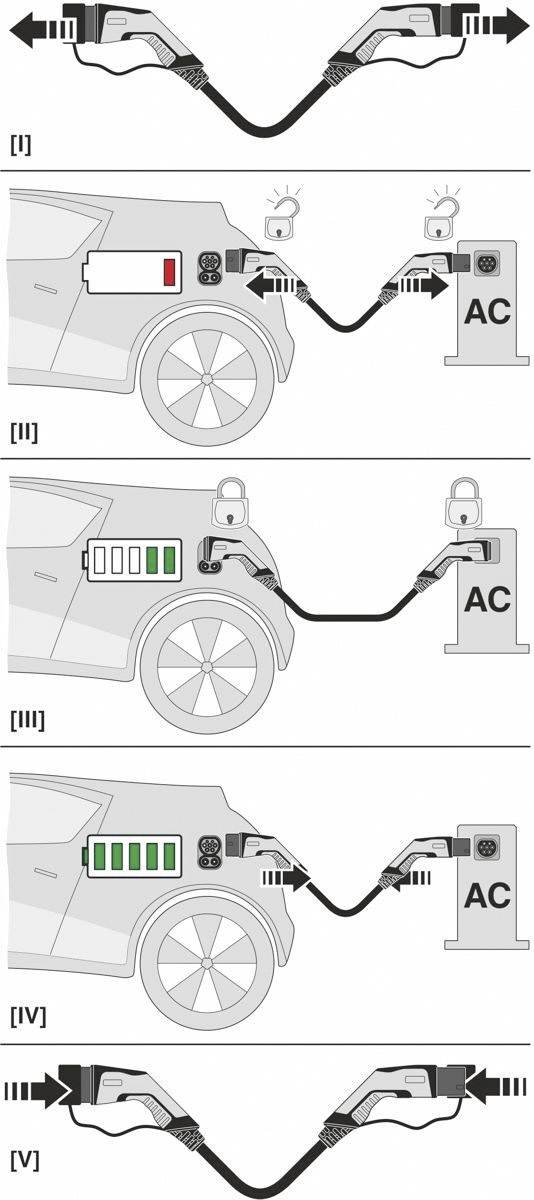

'Illustration of the Charging Process for an Electric Vehicle in Four Steps: Step 1 - Connecting; Step 2 - Charging Starts; Step 3 - Charging in Progress; Step 4 - Charging Complete.'

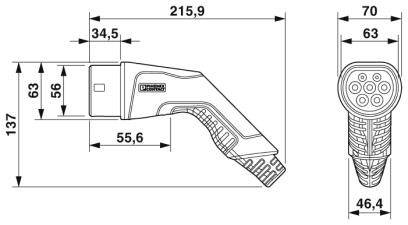

Technical drawing of a plug with dimensions: Total length 215.9 mm, Height 137 mm, Plug length 55.6 mm, Connection width 34.5 mm.

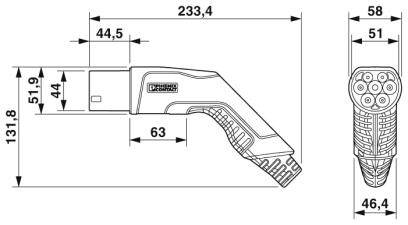

Technical drawing of a charging plug with dimensions, showing top and side views, including length and width specifications.

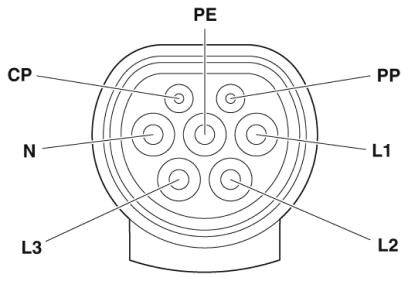

Diagram of an IEC 62196 Type 2 vehicle charging socket with seven labelled contacts: PE, PP, L1, L2, L3, N, CP.

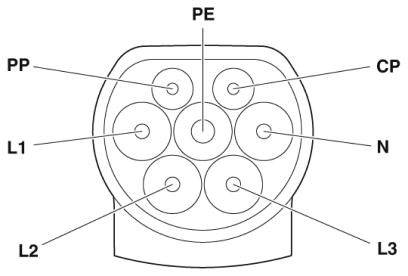

'Type 2 Charging Connector' diagram with socket pin labels: PE, PP, CP, N, L1, L2, L3; shows plug face view for electric vehicles.

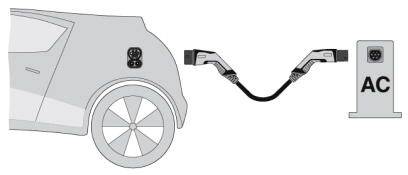

An electric car is being charged at an AC charging station. The cable connects the car's charging port to the station.

1/8

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Casing color: Black
Color plug face: Black
Color grip area: Gray
Material casing: Plastic
Material grip range: Soft plastic
Material plug face: Plastic
Contact material surface: AG
outer sheathing black
Protective cap color: Black
Protective cap material: Soft plastic
Outer sheath, material: TPE-U
Vehicle charging plug width 70 mm
Vehicle charging plug height 137 mm
Vehicle charging plug depth: 215.9 mm
Infrastructure-charging plug Height: 131.8 mm
Infrastructure charging plug Width: 58 mm
Infrastructure charging plug Depth 233.4 mm
Ambient temperature (storage/transport): -40 °C - +80 °C.
Maximum charging power: 26.6 kW
Number of power contacts: 5 (L1, L2, L3, N, PE)
Number of signal contacts: 2 (CP, PP)
Signal contacts Rated current 2 A.
Signal contacts Rated voltage 30 V/AC
Resistance coding 220 Ω (between PE and PP)
Mating cycles> 10000
Insertion force< 100 N.
Force 100< N.
Minimum bending radius 255 mm (15 x diameter)
Cable type: Straight
External diameter of the cable: 17 mm ±0.4 mm
Cable layout 5 x 6 mm² + 1 x 0.5 mm²
Cable resistance< 0.0033 Ω/m

Product type: eMobility charging cable

Type A: Type 2

Type B: Type 2

No. of phases: 3-phase

Type: C-Line black / gray

Charging mode: Mode 3

Cable length: 8 m

Nominal voltage: 480 V AC

Nominal current: 32 A

Nominal current - rounded value: 32 A

: IP44
IP54

Min. temperature: -30 °C

Max. temperature: +50 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209271 Phoenix Contact 1627999 eMobility charging cable 8 m

User & Safety Instructions

User & Safety Instructions 2209271 Phoenix Contact 1627999 eMobility charging cable 8 m

Description

Silver-plated surface for power and signal contacts. Certified according to IATF 16949:2016 and ISO 9001:2015.

This text is machine translated.
