Buy Phoenix Contact 1628199 eMobility charging cable 7 m

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

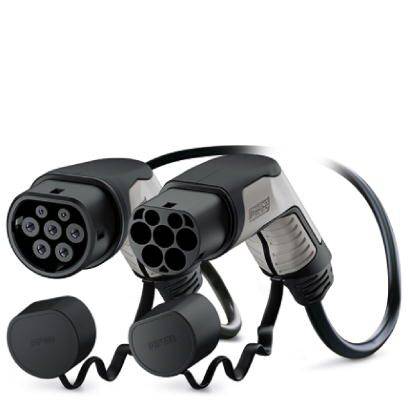

Two electric vehicle charging plugs with spiral cables, lying side by side, on a white background.

Image similar

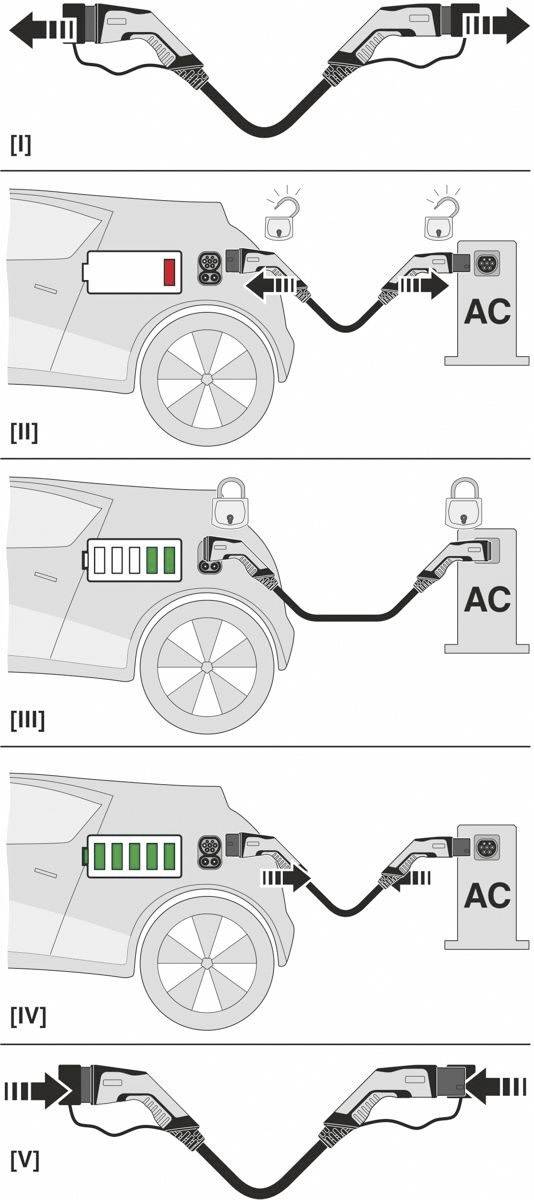

Diagram shows the process of charging an electric vehicle in four steps: Plug in cable, Start charging, Battery being filled, Remove cable.

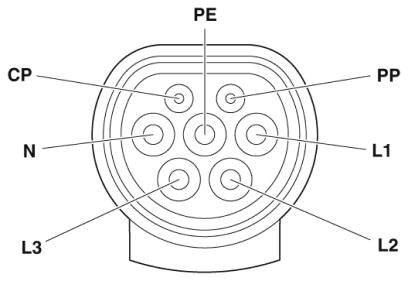

'Connector pin layout diagram: PE, CP, PP, N, L1, L2, L3 with respective positions marked. 7-pin system, potential use for chargers.'

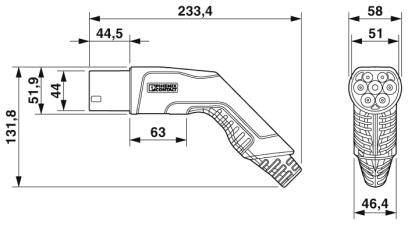

Technical drawing of a plug with dimensions: Length 233.4 mm, Width 46.4 mm, Height 131.8 mm. Side and front view depicted.

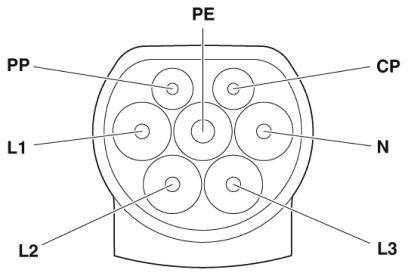

Plug type diagram with seven labelled contacts: PE, PP, L1, L2, L3, CP, N. Shows the arrangement and function of the contacts.

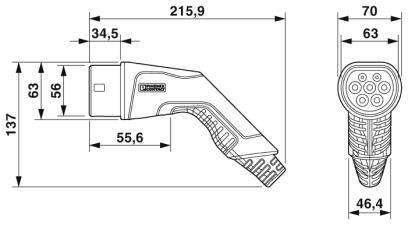

Technical drawing of a plug type with dimensions: Length 215.9 mm, Width 63 mm, Height 137 mm. Shows side and front view.

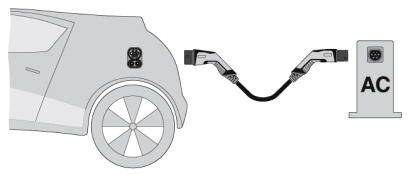

Illustration of an electric car connected via a cable to a charging station labelled 'AC'.

1/7

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Casing color: Black
Color plug face: Black
Color grip area: Gray
Material casing: Plastic
Material grip range: Soft plastic
Material plug face: Plastic
Contact material surface: AG
outer sheathing black
Protective cap color: Black
Protective cap material: Soft plastic
Outer sheath, material: TPE-U
Vehicle charging plug width 70 mm
Vehicle charging plug height 137 mm
Vehicle charging plug depth: 215.9 mm
Infrastructure-charging plug Height: 131.8 mm
Infrastructure charging plug Width: 58 mm
Infrastructure charging plug Depth 233.4 mm
Ambient temperature (storage/transport): -40 °C - +80 °C.
Maximum charging power: 26.6 kW
Number of power contacts: 5 (L1, L2, L3, N, PE)
Number of signal contacts: 2 (CP, PP)
Signal contacts Rated current 2 A.
Signal contacts Rated voltage 30 V/AC
Resistance coding 220 Ω (between PE and PP)
Mating cycles> 10000
Insertion force< 100 N.
Force 100< N.
Minimum bending radius 255 mm (15 x diameter)
Cable type: Straight
External diameter of the cable: 17 mm ±0.4 mm
Cable layout 5 x 6 mm² + 1 x 0.5 mm²
Cable resistance< 0.0033 Ω/m

Product type: eMobility charging cable

Type A: Type 2

Type B: Type 2

No. of phases: 3-phase

Type: C-Line black / gray

Charging mode: Mode 3

Cable length: 7 m

Nominal voltage: 480 V AC

Nominal current: 32 A

Nominal current - rounded value: 32 A

: IP44
IP54

Min. temperature: -30 °C

Max. temperature: +50 °C

Depth: 400.0000 mm

Height: 60.0000 mm

Width: 400.0000 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209274 Phoenix Contact 1628199 eMobility charging cable 7 m

User & Safety Instructions

User & Safety Instructions 2209274 Phoenix Contact 1628199 eMobility charging cable 7 m

Description

Silver-plated surface for power and signal contacts. Certified according to IATF 16949:2016 and ISO 9001:2015.

This text is machine translated.
