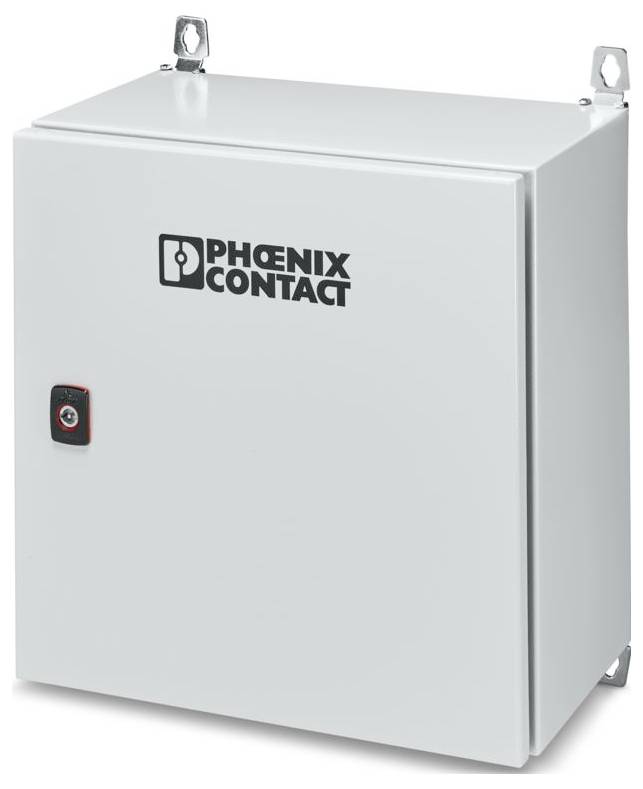

Phoenix Contact 1636099 WIL-BI-IOL Switchgear combination
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal voltage UN 230 V AC (50 Hz)
- RJ45 socket connection
- Ambient conditions: Environmental conditions
- Protection class: IP54
- Ambient temperature (operation): -25 °C ... 50 °C
- Ambient temperature (storage/transport): -40 °C ... 60 °C (destruction limit)
- Insulation properties: Insulation properties
- Permissible humidity (operating): ≤ 95% (at 25°C, no condensation)
- Transmission speed 10/100/1000 MBit/s
- Nominal current IN: 0.6 A
- Material: Steel sheet (wall housing, powder-structural lacquer)
- Fuse: Fuse
- Protection class: I
- Control voltage 24 V DC
- Nominal power 138 VA
- Recommended fuse: 16 A.
- External dimensions: External dimensions
- Width / height / depth: 400 mm / 400 mm / 210 mm
- Colour RAL 7035 light gray
- Air pressure (operation): 70 kPa ... 106 kPa (up to 2000 m üNN)
- Area of use: Inside, no direct sunlight
- Ethernet: Ethernet
- Bus system RJ45
- Transfer length: Max. 100 m (per segment)
- Note on the status of the technical data: The specific technical data of the installed components can be found in the corresponding product documentation.
- Delivery: 1x connection cable for feed
- Type
WIL-BI-IOL
- Product type
Switchgear combination
- Manufacturer part #
1636099
- Dim
(L x W x H) 210 x 400 x 400 mm
- Operating temperature
-25 °C (min)
- Min. operating temperature
-25 °C
- Width
400 mm
- Height
400 mm
- Length
210 mm
- Interfaces
RJ45
- Max. ambient temperature
60 °C
- Min. ambient temperature
-40 °C
IP54
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3572168 Phoenix Contact 1636099 WIL-BI-IOL Switchgear combination
User & Safety Instructions
User & Safety Instructions 3572168 Phoenix Contact 1636099 WIL-BI-IOL Switchgear combination
Description
Switch device combination, communication: Ethernet, delivery scope: 1x connection cable for feed
