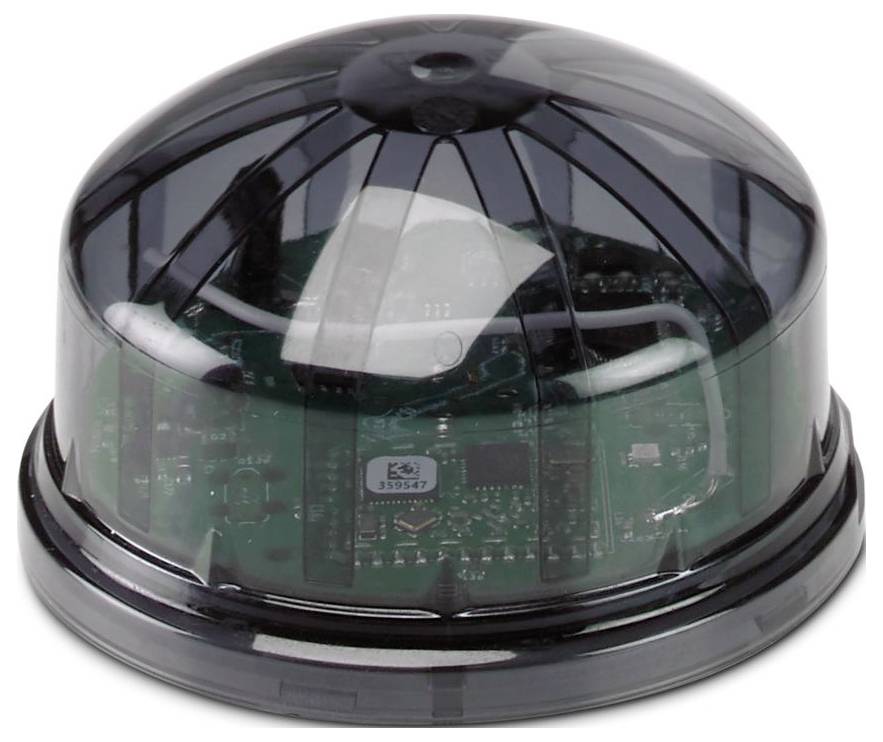

Phoenix Contact 1639790 LPWAN LCU D4I ZHAGA EU Transmitter module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type of connection: Zhaga-Book-18 jack
- Height: 52 mm
- Colour: Transparent
- Ambient conditions: Environmental conditions
- IP66 protection rating
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Mounting type: Plug-in mounting (Zhaga-book-18 plug connection)
- Insulation properties: Insulation properties
- Permissible air humidity (operation): 0 % ... 95% (no condensation)
- Frequency range: 867.1 MHz ... 869.525 MHz
- Diameter 80 mm
- Protection class II (plastic housing)
- CE CE
- Permissible humidity (storage/transport): 0 % ... 95 %.
- Note for application: Only for industrial use
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Transmission Physics: Lora®
- Designation: LoRaWAN® EU 868
- Supply: Supply
- Range: Up to 15 km
- Transmitted power < 14 dBm
- Transient surge protection: No.
- Basic functionality: Control for LED driver
- Functions: Functions
- Supply voltage: Typ. 24 V DC ±2 V (≥ 1 W)
- Number: 1
- Wireless
- System limits: System limits
- Number of supported subscribers: = 1 (via DALI communication with internal power supply);≤ 64 (via DALI communication with external power supply)
- Radio approvals: Europe
- 868 MHz ...
- Radio standard: LoRaWAN®
- Automatic channel selection: ADR
- Hungary;Czech Republic;Hungary;Hungary;Czech Republic;Austria;Bahrain;Bangladesh;Belarus;Belgium;Burma (Myanmar);Bosnia/Herzegovina;Brunei Darussalam;Bulgaria;Cambodia;Croatia;Cyprus;Czech Republic;Denmark;Estonia;Finland;France;Germany;Greece;Hungary;Iran;Italy;Latvia;Lebanon;Liechtenstein;Lithuania;Luxembourg;Macedonia;Malta;Czech Republic;Poland;Slovakia;Czech Republic;Hungary;Hungary;Slovakia;Hungary;Poland;Hungary;Czech Republic
- Receiver sensitivity - 139.50 dBm
- Number of radio interfaces: 1
- Conformity to EMC guidelines: Testing the immunity to EN 301489-1 Discharge static electricity (ESD) Criteria A, ±4 kV contact discharge, ±8 kV air discharge;Electromagnetic fields criterion A, field strength: 10 V/m ;Fast transients (burst ) criterion A, ±2 kV;Transient overvoltage (surge) criterion A, ±1 kV (symmetrical);Conducted disturbances criterion A, test voltage 10 V;Testing the emission of IEC 55015
- Type
LPWAN LCU D4I ZHAGA EU
- Product type
Transmitter module
- Operating voltage
24 V DC
- Manufacturer part #
1639790
- Height
52 mm
- Interfaces
Zhaga-Book-18 socket
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
IP66
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3572033 Phoenix Contact 1639790 LPWAN LCU D4I ZHAGA EU Transmitter module
User & Safety Instructions
User & Safety Instructions 3572033 Phoenix Contact 1639790 LPWAN LCU D4I ZHAGA EU Transmitter module
Description
Zhaga-Book-18 compatible road light control unit via LoRaWAN®, power supply and DALI-2 communication via Zhaga compatible socket, DALI-2 compatible ECGs control
