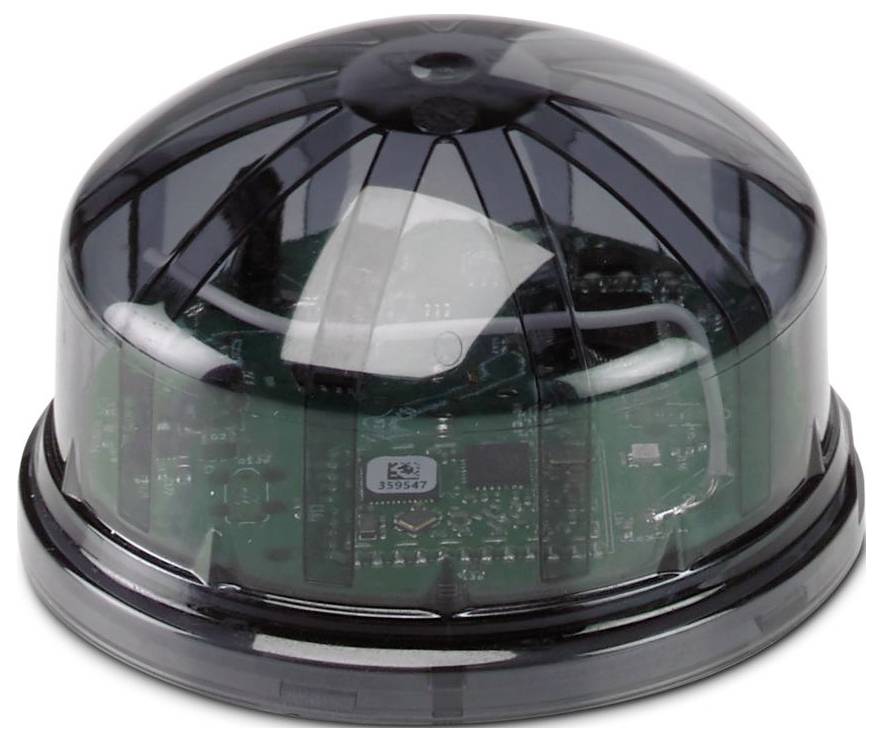

Phoenix Contact 1639836 LPWAN LCU D4I ZHAGA BULK 48 EU Transmitter module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type of connection: Zhaga-Book-18 jack
- Width 80 mm
- Height: 45 mm
- Depth: 80 mm
- Colour: Transparent
- Ambient conditions: Environmental conditions
- IP66 protection rating
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Mounting type: Plug-in mounting (Zhaga-book-18 plug connection)
- Insulation properties: Insulation properties
- Permissible air humidity (operation): 0 % ... 95% (no condensation)
- Protection class II (plastic housing)
- CE CE
- Permissible humidity (storage/transport): 0 % ... 95 %.
- Note for application: Only for industrial use
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Transmission Physics: Lora®
- Designation: LoRaWAN® EU 868
- Supply: Supply
- Range: Up to 15 km
- Transmission power: Up to 27 dBm
- Transient surge protection: No.
- Basic functionality: Control for LED driver
- Functions: Functions
- Supply voltage: Typ. 24 V DC ±2 V (≥ 1 W)
- Number: 1
- Wireless
- System limits: System limits
- Number of supported subscribers: = 1 (via DALI communication with internal power supply);≤ 64 (via DALI communication with external power supply)
- Radio approvals: Europe
- 868 MHz ...
- Radio standard: LoRaWAN®
- Automatic channel selection: ADR
- Hungary;Czech Republic;Hungary;Hungary;Czech Republic;Austria;Bahrain;Bangladesh;Belarus;Belgium;Burma (Myanmar);Bosnia/Herzegovina;Brunei Darussalam;Bulgaria;Cambodia;Croatia;Cyprus;Czech Republic;Denmark;Estonia;Finland;France;Germany;Greece;Hungary;Iran;Italy;Latvia;Lebanon;Liechtenstein;Lithuania;Luxembourg;Macedonia;Malta;Czech Republic;Poland;Slovakia;Czech Republic;Hungary;Hungary;Slovakia;Hungary;Poland;Hungary;Czech Republic
- Receiver sensitivity - 139.50 dBm
- Number of radio interfaces: 1
- Conformity to EMC guidelines: Testing the immunity to EN 61000-6-2/IEC 2 ESD discharge static electricity (ESD)EN 61000-6-2- 61000-2/IEC 61000-4-2 Criterion A, ±4 kV contact discharge , ±8 kV air discharge;Testing of immunity according to EN 61000-6-61000-6-2/IEC 61000 Electromagnetic fields EN 4-4-3/IEC 61000-4-3 Criterion A, field strength: 10 ± 4 10 3 V/m;immunity testing according to EN 61000 61000-6-2 6 61000 61000-6-3-6 61000 61000-4-6 6 55015-1/IEC 5 fast transients (burst)EN 61000-4-5-4-61000-6-2/IEC 61000 Criterion A, ±2 kV;Immunity testing according to EN 61000-6-2/IEC 4 transient overvoltage (surge)EN 61000-4-4-4-61000-6-2-61000/IEC 6-2/IEC 61000 RF interference test 2-A
- Type
LPWAN LCU D4I ZHAGA BULK 48 EU
- Product type
Transmitter module
- Operating voltage
24 V DC
- Manufacturer part #
1639836
- Dim
(L x W x H) 80 x 80 x 45 mm
- Width
80 mm
- Height
45 mm
- Length
80 mm
- Interfaces
Zhaga-Book-18 socket
IP66
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3572042 Phoenix Contact 1639836 LPWAN LCU D4I ZHAGA BULK 48 EU Transmitter module
User & Safety Instructions
User & Safety Instructions 3572042 Phoenix Contact 1639836 LPWAN LCU D4I ZHAGA BULK 48 EU Transmitter module
Description
Zhaga-Book-18 compatible control unit for road lights via LoRaWAN®, VPE: 48 units, power supply and DALI-2 communication via Zhaga compatible socket, activation of DALI-2 compatible ECGs
