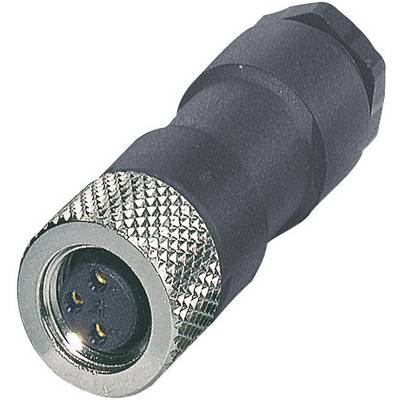

Phoenix Contact 1681185 SACC-M 8FS-4CON-M Field Attachable Plug ConnectorM8, Soldered Connection
EAN:
Part number:
Item no:
Datasheet (PDF)
7 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€
Only 7 Piece(s) available
Highlights & Details
Phoenix Contact 1681185 SACC-M 8FS-4CON-M Field Attachable Plug ConnectorM8, Soldered Connection
- SACC-M 8FS-4CON-M
- PLUSCON field
Technical specifications
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
Customisable
- Connection side B
M8 socket, straight
- No. of pins
4
- Nominal voltage
30 V AC
30 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.25 mm²
- Connection
Soldering
- Thread type connection side
M8
- Coding
A
IP67
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Content
1 pc(s)
- Manufacturer part #
1681185
- Type
SACC-M 8FS-4CON-M
- Type
M8-Socket, straight
- Nominal voltage (details)
30 V
- Nominal current (details)
4 A
- Connector cross section
0.08 - 25 mm²
- Connection
Soldering
- Temperature range
-40 - +85 °C
- Product type
Sensor/actuator connector
Documents & Downloads
Datasheet
Datasheet 748615 Phoenix Contact 1681185 SACC-M 8FS-4CON-M Field Attachable Plug ConnectorM8, Soldered Connection
User & Safety Instructions
User & Safety Instructions 748615 Phoenix Contact 1681185 SACC-M 8FS-4CON-M Field Attachable Plug ConnectorM8, Soldered Connection
Description
For quick assembly of many different cable lengths e.g. locally there is a wide range of free-field attachable connectors available. M8 Connectors are available with a classic screw or solder and the Piercecon ® Quick Connector.
For EMV applications are just shield able, free Ready-Made attachable connectors are available. One can characterise by durable, metallic covering with appropriate shielding effectiveness.
For EMV applications are just shield able, free Ready-Made attachable connectors are available. One can characterise by durable, metallic covering with appropriate shielding effectiveness.
