Buy Phoenix Contact 1689734 VS-25-A-GC-BU/BU D-SUB expansion bracket 5 pc(s)

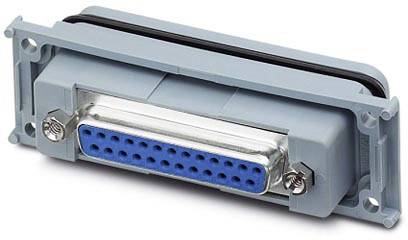

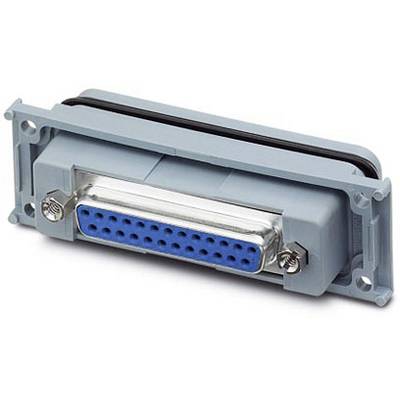

A parallel printer connection with a blue 25-pin plug, surrounded by a grey casing.

Image similar

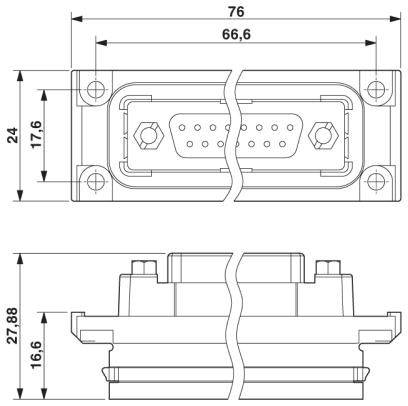

Technical drawing of a rectangular connector; shows dimensions: width 76 mm, height 24 mm at the front, 27.88 mm at the side.

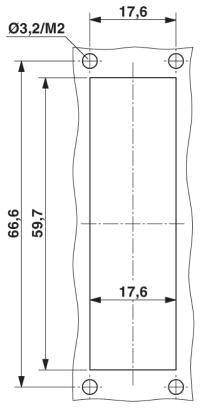

Technical Drawing of a Rectangular Object with Dimensions: Length 66.6 cm, Width 17.6 cm. Holes in the Corners, Ø 3.2 cm.

1/3

Image similar

Product type

D-SUB expansion bracket

Content

5 pc(s)

Manufacturer part #

1689734

Material (details)

Housing: PA, contact carrier: Polyester GF, contact: Copper alloy, contact surface: Hard gold plated over nickel

Length

76 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Weight 29.24 g
Over voltage category III
Ambient temperature (operating): -40 °C - +80 °C.
Width: 24 mm
Height: 27.9 mm
Number of pins: 25
Rated current 5 A
Rated voltage: 125 V
Protection class: IP67

Product type: D-SUB expansion bracket

Content: 5 pc(s)

Manufacturer part #: 1689734

Material (details): Housing: PA, contact carrier: Polyester GF, contact: Copper alloy, contact surface: Hard gold plated over nickel

Length: 76 mm

RoHS-compliant: Yes

Type: VS-25-A-GC-BU/BU

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2137363 Phoenix Contact 1689734 VS-25-A-GC-BU/BU D-SUB expansion bracket 5 pc(s)

User & Safety Instructions

User & Safety Instructions 2137363 Phoenix Contact 1689734 VS-25-A-GC-BU/BU D-SUB expansion bracket 5 pc(s)

Description

D-SUB mounting frame, shell size 3, with 25 signal contacts, socket, gender changer, shielded, protection class IP67

This text is machine translated.
