Buy Phoenix Contact 1704567 2-tier terminal 1.50 mm² Number of pins 2 Green 250 pc(s)

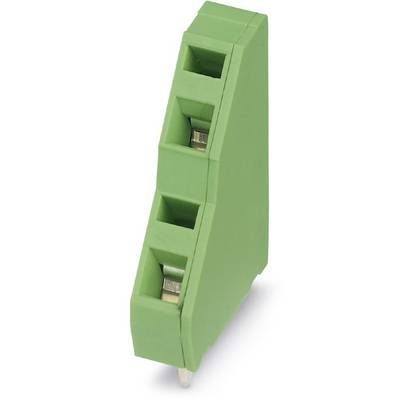

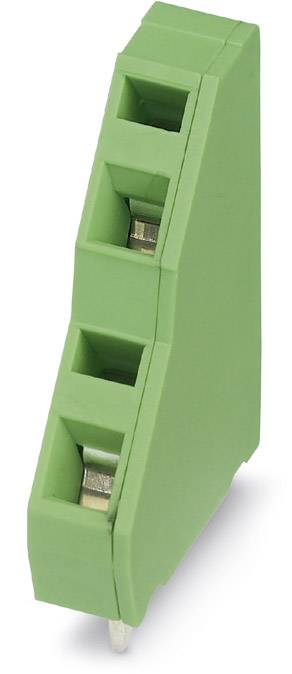

Green plastic plug with three connection sockets, shown from the side.

Image similar

Product type

2-tier terminal

5.08 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 250 pc(s))

Set(s)

Total (€ 0.82 / piece)

€ 205.87

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block ZFKKDSA 1,5-6,08

ZFKKDSA 1.5-6.08
Industrial packaging with 250 pieces

Technical specifications

Type: ZFKKDSA 1,5-6,08

Product type: 2-tier terminal

CS: 5.08 mm

Pins per row: 1

Number of pins: 2

Series: ZFKKDS(A)

Stripping length (max.): 7.50 mm

Connection: Spring-loaded terminal
Print

Nominal current: 12 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 12 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 24

Connector orientation: At an angle (to the PCB)

AWG max.: 14

Contact material: Tin plated

Factory colour: Green

Manufacturer part #: 1704567

Industrial packaging: Yes

Content: 250 pc(s)

Nominal voltage: 400 V

Width: 29.50 mm

Height: 24.00 mm

Length: 6.08 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Type

Number of pins

Connector orientation

Product type

Phoenix Contact 1704567 2-tier terminal 1.50 mm² Number of pins 2 Green 250 pc(s)

Item no:788452

This article

12 A

ZFKKDSA 1,5-6,08

At an angle (to the PCB)

2-tier terminal

5.08 mm

Phoenix Contact 1737284 Spring-loaded terminal 10.00 mm² Number of pins 6 Green 50 pc(s)

Item no:568751

76 A

ZFKDSA 10-10,00- 6 GYBDPE-L1SO

At an angle (to the PCB)

Spring-loaded terminal

10.00 mm

Phoenix Contact 1705003 Spring-loaded terminal 1.00 mm² Number of pins 1 Green 50 pc(s)

Item no:717492

12 A

ZFKDS 1-W-3,81

At an angle (to the PCB)

Spring-loaded terminal

3.81 mm

Phoenix Contact 1706727 Spring-loaded terminal 1.50 mm² Number of pins 1 Green 250 pc(s)

Item no:772245

16 A

ZFKDSA 1,5-7,62

At an angle (to the PCB)

Spring-loaded terminal

7.62 mm

Phoenix Contact 1704994 Spring-loaded terminal 1.00 mm² Number of pins 1 Green 50 pc(s)

Item no:772317

12 A

ZFKDSA 1-W-6,35

At an angle (to the PCB)

Spring-loaded terminal

3.81 mm

Phoenix Contact 1706730 Spring-loaded terminal 1.50 mm² Number of pins 1 Green 250 pc(s)

Item no:773403

16 A

ZFKDSA 1,5-W-7,62

At an angle (to the PCB)

Spring-loaded terminal

7.62 mm

Phoenix Contact 1704981 Spring-loaded terminal 1.00 mm² Number of pins 1 Green 50 pc(s)

Item no:773557

12 A

ZFKDSA 1-6,35

At an angle (to the PCB)

Spring-loaded terminal

3.81 mm

Phoenix Contact 1704402 2-tier terminal 1.50 mm² Number of pins 2 Green 100 pc(s)

Item no:773852

12 A

ZFKKDS 1,5-5,08

At an angle (to the PCB)

2-tier terminal

5.08 mm

Phoenix Contact 1707357 Spring-loaded terminal 1.00 mm² Number of pins 1 Green 50 pc(s)

Item no:774489

12 A

ZFKDSA 1-V-6,35

Perpendicular (to the PCB)

Spring-loaded terminal

3.81 mm

Phoenix Contact 1706714 Spring-loaded terminal 1.50 mm² Number of pins 1 Green 250 pc(s)

Item no:775698

16 A

ZFKDS 1,5-W-5,08

At an angle (to the PCB)

Spring-loaded terminal

5.08 mm

Documents & Downloads

Datasheet

Datasheet 788452 Phoenix Contact 1704567 2-tier terminal 1.50 mm² Number of pins 2 Green 250 pc(s)

User & Safety Instructions

User & Safety Instructions 788452 Phoenix Contact 1704567 2-tier terminal 1.50 mm² Number of pins 2 Green 250 pc(s)

Description

PCB terminal block, Nominal current: 12 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 1, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 45 °, Color: green
