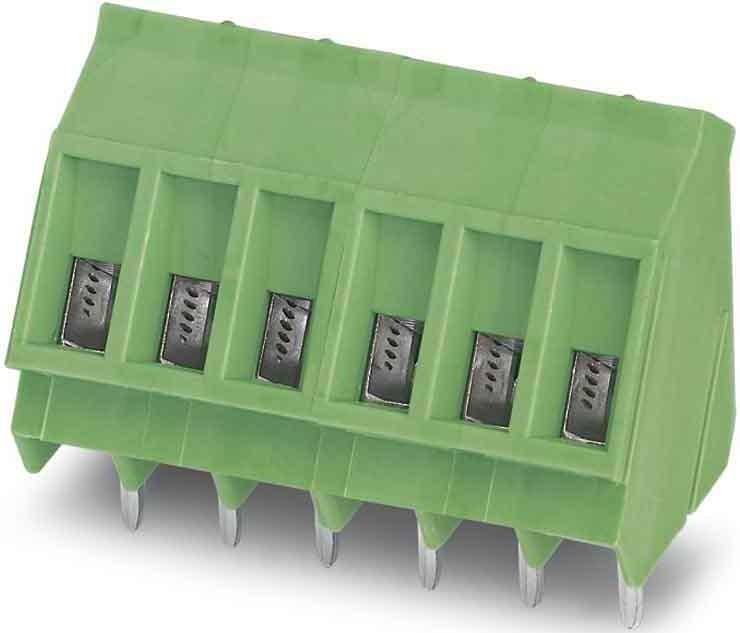

Image similar

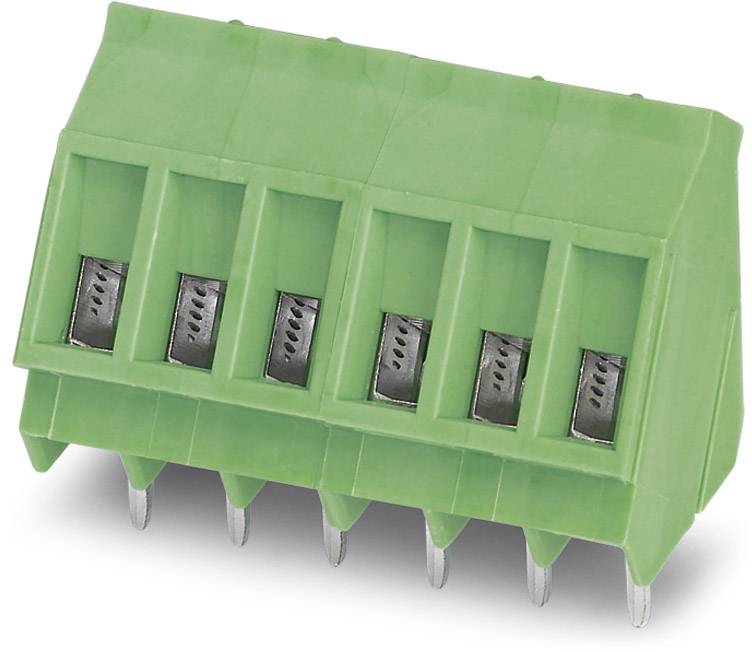

Image similar
Phoenix Contact 1713286 Screw terminal 2.50 mm² Number of pins 6 50 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
5.08 mm
Pins per row
6
Number of pins
6
Connection
Screw terminal
Print
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.44 / piece)
€ 121.84
plus VAT.
Highlights & Details
PCB terminal block SMKDS 3/ 6-5,08
- Content 50 pc(s)
Technical specifications
- Type
SMKDS 3/ 6-5,08
- Product type
Screw terminal
- Features
+ extractor sleeve
- CS
5.08 mm
- Pins per row
6
- Number of pins
6
- Series
SMKDS
- Stripping length (max.)
8.00 mm
- Connection
Screw terminal
Print
- Nominal current
24 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
4.00 mm²
- AWG (min.)
24
- Connector orientation
At an angle (to the PCB)
- AWG max.
12
- Contact material
Tin plated
- Actuation direction
At an angle (to the PCB)
- Manufacturer part #
1713286
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
400 V
- Height
18.00 mm
- Length
16.00 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788149 Phoenix Contact 1713286 Screw terminal 2.50 mm² Number of pins 6 50 pc(s)
User & Safety Instructions
User & Safety Instructions 788149 Phoenix Contact 1713286 Screw terminal 2.50 mm² Number of pins 6 50 pc(s)
Description
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 6, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 35 °, The article can be aligned to create different nos. of positions!
