Phoenix Contact 1713927 Screw terminal 4.00 mm² Number of pins 8 Green 50 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
6.35 mm
Pins per row
8
Number of pins
8
Connection
Screw terminal
Print
Datasheet (PDF)
9 Set(s)
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 193.27 / piece)
€
Only 9 Set(s) available
Highlights & Details

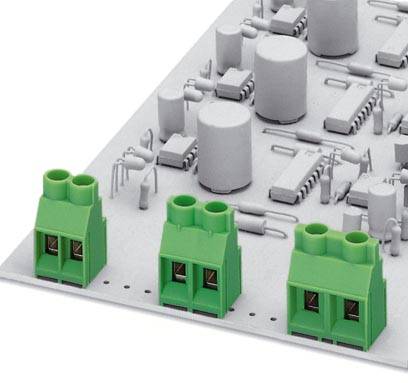

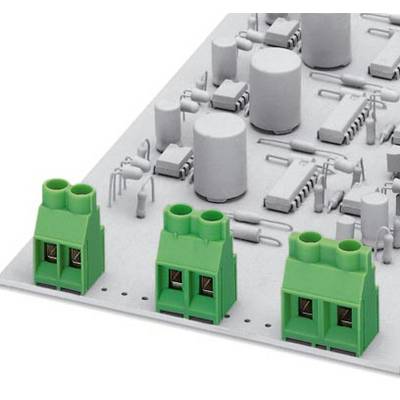

PCB terminal block MKDS 5/ 8-6,35
- Content 50 pc(s)
Technical specifications
- Type
MKDS 5/ 8-6,35
- Product type
Screw terminal
- Features
+ extractor sleeve
Stackable
- CS
6.35 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Series
MKDS
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Connection
Screw terminal
Print
- Nominal current
32 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
32 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
4.00 mm²
- Cross section (inflexible) (max.)
6.00 mm²
- AWG (min.)
24
- Connector orientation
Parallel (to the PCB)
- AWG max.
10
- Contact material
Cathode copper, tin plated
- Factory colour
Green
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1713927
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
630 V
- Width
50.80 mm
- Height
26.60 mm
- Length
19.05 mm
Documents & Downloads
Datasheet
Datasheet 194976 Phoenix Contact 1713927 Screw terminal 4.00 mm² Number of pins 8 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 194976 Phoenix Contact 1713927 Screw terminal 4.00 mm² Number of pins 8 Green 50 pc(s)
Description
PCB terminal block, Nominal current: 32 A, Nom. voltage: 630 V, Pitch: 6.35 mm, Number of positions: 8, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
