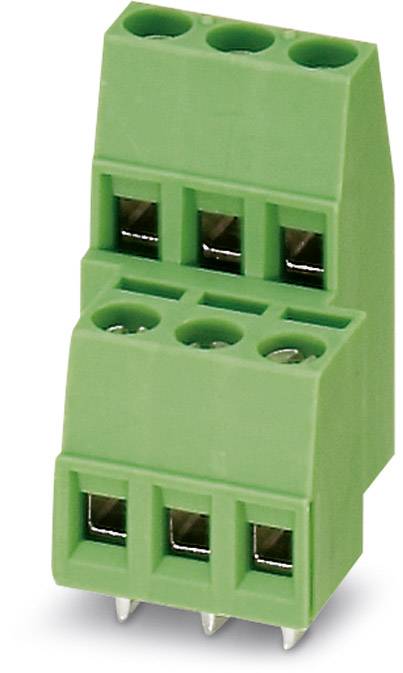

Phoenix Contact 1725041 2-tier terminal 1.50 mm² Number of pins 6 Green 100 pc(s)
EAN:
Part number:
Item no:
Product type
2-tier terminal
CS
5.08 mm
Pins per row
3
Number of pins
6
Connection
Screw terminal
Print
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 2.02 / piece)
€ 214.29
-6 %
€ 201.67
plus VAT.
14-day return policy included
Highlights & Details
PCB terminal block MKKDS 1,5/ 3-5,08
- MKKDS 1.5/ 3-5,08
- Industrial packaging with 100 pieces
Technical specifications
- Type
MKKDS 1,5/ 3-5,08
- Product type
2-tier terminal
- Features
+ extractor sleeve
- CS
5.08 mm
- Pins per row
3
- Number of pins
6
- Series
MKKDS
- Stripping length (max.)
7.00 mm
- Connection
Screw terminal
Print
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Tin plated
- Factory colour
Green
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1725041
- Industrial packaging
Yes
- Content
100 pc(s)
- Nominal voltage
400 V
- Width
28.70 mm
- Height
21.40 mm
- Length
17.78 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 717399 Phoenix Contact 1725041 2-tier terminal 1.50 mm² Number of pins 6 Green 100 pc(s)
User & Safety Instructions
User & Safety Instructions 717399 Phoenix Contact 1725041 2-tier terminal 1.50 mm² Number of pins 6 Green 100 pc(s)
Description
PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 3, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
