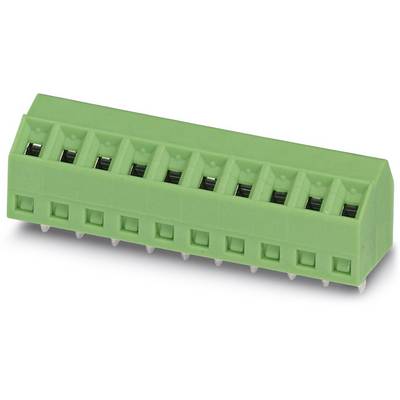

Image similar

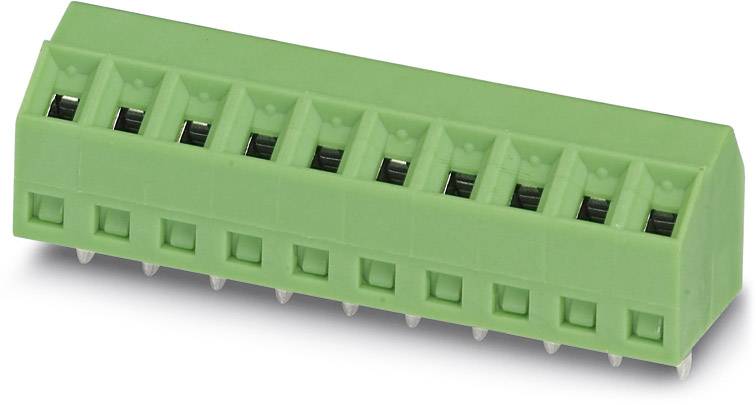

Image similar
Phoenix Contact 1728352 Screw terminal 1.00 mm² Number of pins 9 Green 100 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
3.81 mm
Pins per row
9
Number of pins
9
Connection
Screw terminal
Print
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 2.65 / piece)
€ 264.71
plus VAT.
14-day return policy included
Highlights & Details
PCB terminal block SMKDS 1/ 9-3,81
- SMKDS1/9-3 ,81
- Industrial packaging with 100 pieces
Technical specifications
- Type
SMKDS 1/ 9-3,81
- Product type
Screw terminal
- Features
+ extractor sleeve
- CS
3.81 mm
- Pins per row
9
- Number of pins
9
- Series
SMKDS
- Stripping length (max.)
5.00 mm
- Connection
Screw terminal
Print
- Nominal current
10 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
10 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.00 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
26
- Connector orientation
At an angle (to the PCB)
- AWG max.
16
- Contact material
Tin plated
- Factory colour
Green
- Actuation direction
At an angle (to the PCB)
- Manufacturer part #
1728352
- Industrial packaging
Yes
- Content
100 pc(s)
- Nominal voltage
200 V
- Width
34.28 mm
- Height
13.00 mm
- Length
10.00 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788374 Phoenix Contact 1728352 Screw terminal 1.00 mm² Number of pins 9 Green 100 pc(s)
User & Safety Instructions
User & Safety Instructions 788374 Phoenix Contact 1728352 Screw terminal 1.00 mm² Number of pins 9 Green 100 pc(s)
Description
PCB terminal block, Nominal current: 10 A, Nom. voltage: 200 V, Pitch: 3.81 mm, Number of positions: 9, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 55 °, Color: green
