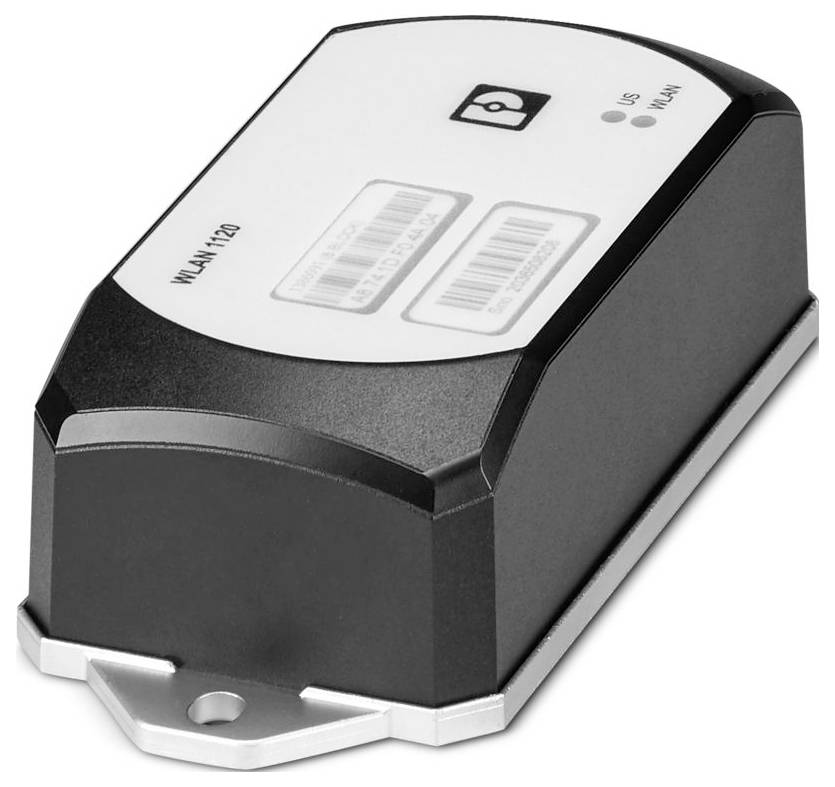

Phoenix Contact 1752496 FL WLAN 1122 Transmitter module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design: Stand-alone
- Number of poles: 3
- RJ45 connection type
- Conductor cross-section flexible: 0.2 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 62.8 mm
- Height: 36.5 mm
- Depth: 113.2 mm
- Material: housing: PC
- Ambient conditions: Environmental conditions
- PROTECTION CLASS IP65;IP66;IP67;IP68
- Ambient temperature (operation): -30 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations EN 55032
- Note: Degree of protection in assembled condition
- Mounting type: Single hole mounting
- Insulation properties: Insulation properties
- Overvoltage category II (IEC 61010-1)
- Permissible air humidity (operation): 5 % ... 95 % (non-condensing)
- Stripped length: 10 mm
- Frequency range: 0.15 MHz ... 80 MHz
- Transmission speed 10/100/1000 MBit/s
- Maximum power loss at rated conditions 4.1 W.
- Number of interfaces: 1
- Air pressure (operation): 800 hPa ... 1080 hPa (up to 2000 m üNN)
- Antenna: Antenna
- Connection type of the antenna: (Internal)
- Transfer length 100 m (per segment)
- Supply voltage range: 9 V DC ... 32 V DC (PELV/SELV)
- COMBICON connection method
- Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
- Power consumption 620 mA (at Umin/ Tmax/ max. Data throughput)
- Signal: ± 0.5 kV (symmetrical);± 1 kV (asymmetrical)
- Mounting instructions: Internal antenna
- Discharge of static electricity: Discharge of static electricity
- Contact discharge ± 6 kV
- Air discharge ± 8 kV
- Note: ±2.2 kV
- Electromagnetic HF-field: Electromagnetic HF-field
- Test field strength 3 V/m
- Fast Transients (Burst): Fast Transients (Burst)
- Conducted interference: Conducted interference
- Voltage 10 V
- Emitted interference: Interference
- Transmission physics: Copper
- Naming: Wireless LAN
- Connectable radio modules:20 (10 per virtual interface in AP mode)
- Air pressure (storage/transport): 660 hPa ... 1080 hPa (up to 3500 m üNN)
- Surge current load (SURGE): Impulse current load (SURGE)
- Note on connection type: Auto negotiation and auto crossing
- Number of channels: 1 (RJ45 ports)
- Transmission power: Max. 20 dBm (with two antennas)
- Functions: Functions
- Indirect discharge: ± 6 kV
- Design: IEEE 802.11 a/b/g/n/ac/ax 2.4 GHz, 5 GHz > 600 MBit/s.
- Configuration: Web-based management, automated CLI, REST API
- Note on dimensions: Outer dimensions
- Supply: Module electronics: Supply: Module electronics
- SUPPLY VOLTAGE 24 V DC (SELV)
- Number: 2
- Supply current: Type 170 mA (with Unom/ 20°C/ max. Data throughput)
- Ethernet (RJ45): Ethernet (RJ45)
- Cross-section area AWG: 24 ... 16
- 1966101 FMC 1.5/ 3-STF-3.5: 1966101 FMC 1.5/ 3-STF-3.5
- Wireless
- Radio approvals: Europe, other countries in the e-shop
- Frequency band:2.4 GHz;5 GHz;6 GHz
- Wireless standard: WLAN; IEEE 802.11; a; b; g; n; ac; ax; Wi-Fi 6
- Test circuit: 24-V supply / functional earthing 500 V DC 1 min;Ethernet interface / all other potentials 2.25 kV DC 1 min.
- Country Support: Belgium;Bulgaria;Denmark;Germany;Estonia;Finland;France;Greece;Great Britain;Ireland;Italy;Latvia;Liechtenstein;Lithuania;Luxembourg;Malta;Netherlands;Norway;Austria;Poland;Portugal;Romania;Sweden;Switzerland;Slovakia;Slovenia;Spain;Czech Republic;Hungary;Cyprus (Rep.)
- Number of radio interfaces:1 IEEE 802.11 a/b/g/n/ac/ax
- Gain 5 dBi
- Wireless card: Wireless card
- Quality of Service (QoS): Yes
- Material base plate: Zinc die-cast, nickel-plated
- Test result: Class B.
- Type
FL WLAN 1122
- Product type
Transmitter module
- Operating voltage
24 V DC
- Current consumption
620 mA
- Manufacturer part #
1752496
- Type
Stand-alone
- Dim
(L x W x H) 113.2 x 62.8 x 36.5 mm
- Operating temperature
-30 °C (min)
- Min. operating temperature
-30 °C
- Width
62.8 mm
- Height
36.5 mm
- Length
113.2 mm
- Interfaces
RJ45
- Max. ambient temperature
60 °C
- Min. ambient temperature
-30 °C
- Depth
113.2 mm
IP65
Other
62.8 mm
36.5 mm
113.2 mm
Other
IP65
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3574427 Phoenix Contact 1752496 FL WLAN 1122 Transmitter module
User & Safety Instructions
User & Safety Instructions 3574427 Phoenix Contact 1752496 FL WLAN 1122 Transmitter module
Description
WLAN client, soft access Point, Wi-Fi 6, with internal antennas (MIMO) for single hole mounting, IP66/68, -30 °C … +60 °C , WLAN 802.11 a, b, g, N, ac, ax, frequency 2.4 GHz, 5 GHz, 6 GHz, connection data: 9 V DC ... 32 VDC, RJ45: For LAN, http/https, CLI, REMAINDER API
