Buy Phoenix Contact 1771059 Spring-loaded terminal 0.50 mm² Number of pins 5 Black 770 pc(s) Tape

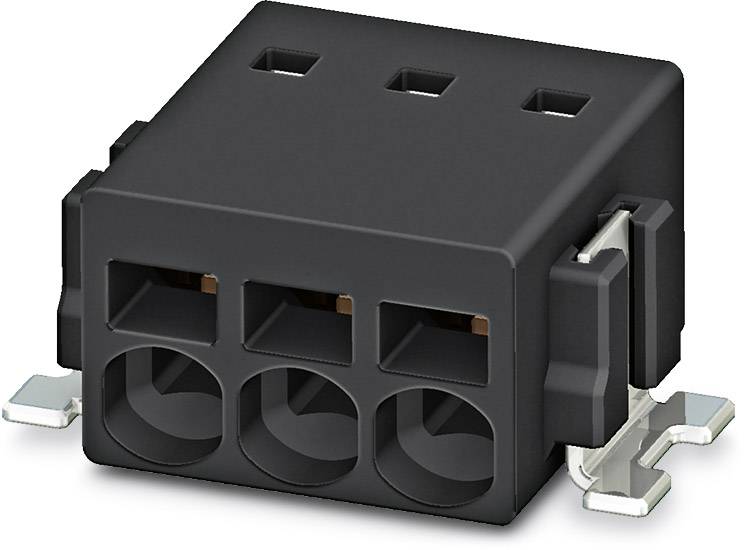

Black electric plug with three terminal connectors and side metal clips for mounting.

Image similar

Packaging type

Tape

Product type

Spring-loaded terminal

2.50 mm

Pins per row

Number of pins

Datasheet (PDF)

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 770 pc(s))

Set(s)

Total (€ 1.12 / piece)

€ 864.71

plus VAT.

Report legal concerns

PCB terminal block PTSM 0,5/ 5-2,5-H SMD R44

Technical specifications

Packaging type: Tape

Type: PTSM 0,5/ 5-2,5-H SMD R44

Product type: Spring-loaded terminal

Features: + push-in spring bracket

CS: 2.50 mm

No. of rows: 1

Pins per row: 5

Number of pins: 5

Series: PTSM

Min. stripping length: 6 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Nominal current: 6 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 6 A

Cross section (inflexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 0.50 mm²

Cross section (inflexible) (max.): 0.50 mm²

AWG (min.): 26

AWG max.: 20

Contact material: Copper alloy

Enclosure material: Polyamide 6.6

Factory colour: Black

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 1771059

Industrial packaging: Yes

Content: 770 pc(s)

Nominal voltage: 160 V

Width: 16.90 mm

Height: 11.00 mm

Length: 5.00 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Type

Pins per row

Connection

Number of pins

Connector orientation

Product type

No. of rows

Phoenix Contact 1752162 Spring-loaded terminal 1.00 mm² Number of pins 8 Green 50 pc(s)

Item no:566494

9 A

SPTA 1/ 8-3,5

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

3.50 mm

Phoenix Contact 1725133 TWIN connector 1.50 mm² Number of pins 4 Green 250 pc(s) Piece

Item no:566506

8 A

PTDA 1,5/ 4-PH-3,5

Spring-loaded terminalPlug

TWIN connector

3.50 mm

Phoenix Contact 1725120 TWIN connector 1.50 mm² Number of pins 3 Green 250 pc(s) Piece

Item no:566762

8 A

PTDA 1,5/ 3-PH-3,5

Spring-loaded terminalPlug

TWIN connector

3.50 mm

Phoenix Contact 1725315 Spring-loaded terminal 2.50 mm² Number of pins 3 Green 50 pc(s)

Item no:566830

24 A

PTDA 2,5/ 3-5,0

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Phoenix Contact 1724912 Spring-loaded terminal 1.50 mm² Number of pins 2 Green 50 pc(s)

Item no:566987

13.5 A

PTDA 1,5/ 2-3,5

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

3.50 mm

Phoenix Contact 1724938 Spring-loaded terminal 1.50 mm² Number of pins 4 Green 50 pc(s)

Item no:567493

13.5 A

PTDA 1,5/ 4-3,5

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

3.50 mm

Phoenix Contact 1725302 Spring-loaded terminal 2.50 mm² Number of pins 2 Green 50 pc(s)

Item no:567993

24 A

PTDA 2,5/ 2-5,0

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Phoenix Contact 1724925 Spring-loaded terminal 1.50 mm² Number of pins 3 Green 50 pc(s)

Item no:568100

13.5 A

PTDA 1,5/ 3-3,5

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

3.50 mm

Phoenix Contact 1725354 Spring-loaded terminal 2.50 mm² Number of pins 6 Green 50 pc(s)

Item no:568601

24 A

PTDA 2,5/ 6-5,0

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Phoenix Contact 1725367 Spring-loaded terminal 2.50 mm² Number of pins 7 Green 50 pc(s)

Item no:568868

24 A

PTDA 2,5/ 7-5,0

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Documents & Downloads

Datasheet

Datasheet 788320 Phoenix Contact 1771059 Spring-loaded terminal 0.50 mm² Number of pins 5 Black 770 pc(s) Tape

User & Safety Instructions

User & Safety Instructions 788320 Phoenix Contact 1771059 Spring-loaded terminal 0.50 mm² Number of pins 5 Black 770 pc(s) Tape

Description

PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 5, Connection method: Spring-cage conn., Mounting: SMD/THT/THR, Conductor/PCB connection direction: 0 °, Color: black
