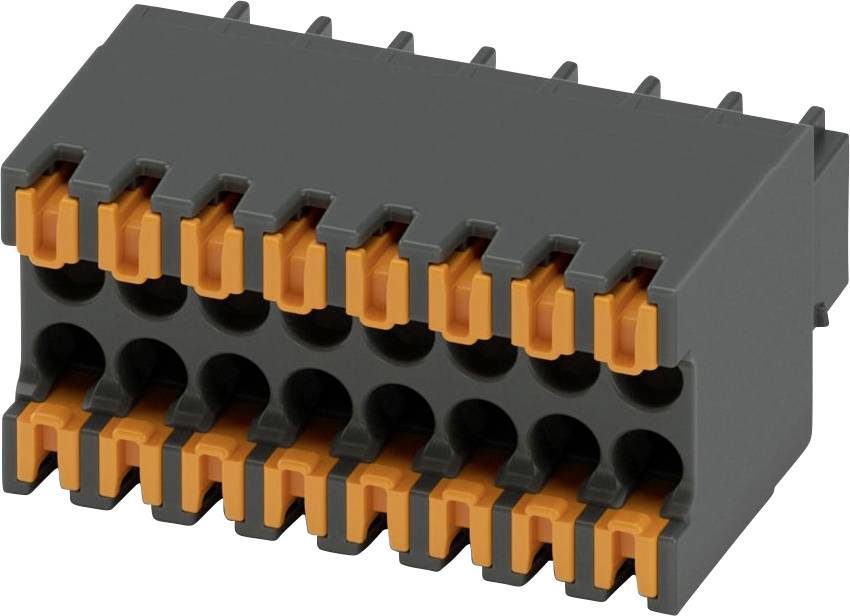

Phoenix Contact 1844633 PCB connector Total number of pins 16 No. of rows 2 50 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
16
CS
2.54 mm
Content
50 pc(s)
No. of rows
2
Datasheet (PDF)
Highlights & Details
PCB connector
- No. of rows 2
- Content 50 pc(s)
Technical specifications
- Connectable cable type: Round cable
- Wire cross-section with single wire connections: 0.14-0.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.14 to 0.25 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.14-0.5 mm²
- Design of electrical connection: Spring-loaded connection
- Rated voltage: 160 V
- Dimensioning surge voltage: 1.5 kV
- Flammability class of insulation material according to UL94: V0
- Contact version: Socket
- Pollution level: 2
- Material of the contact coating: Gold
- Over voltage category III
- Product type
PCB connector
- Total no. of pins
16
- No. of rows
2
- CS
2.54 mm
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1844633
- Content
50 pc(s)
- Contact material
Copper
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
DFMC 0,5/ 8-ST-2,54
- Number of pins
16
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452660 Phoenix Contact 1844633 PCB connector Total number of pins 16 No. of rows 2 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3452660 Phoenix Contact 1844633 PCB connector Total number of pins 16 No. of rows 2 50 pc(s)
Description
PCB connector, nominal cross-section: 0.5 mm², color: Black, nominal current: 6 0 A, rated voltage (III/2): 160 V, contact surface: Au, contact type: Socket, number of potentials: 16, number of rows: 0.5, number of connections: 2.54, product family: DFMC 0.5/.-ST, grid dimension: 8 mm, connection type: Push-in spring connection, connection direction conductor/board: 16 °, DFBMC 2: without, packaging type: packed in a carton
