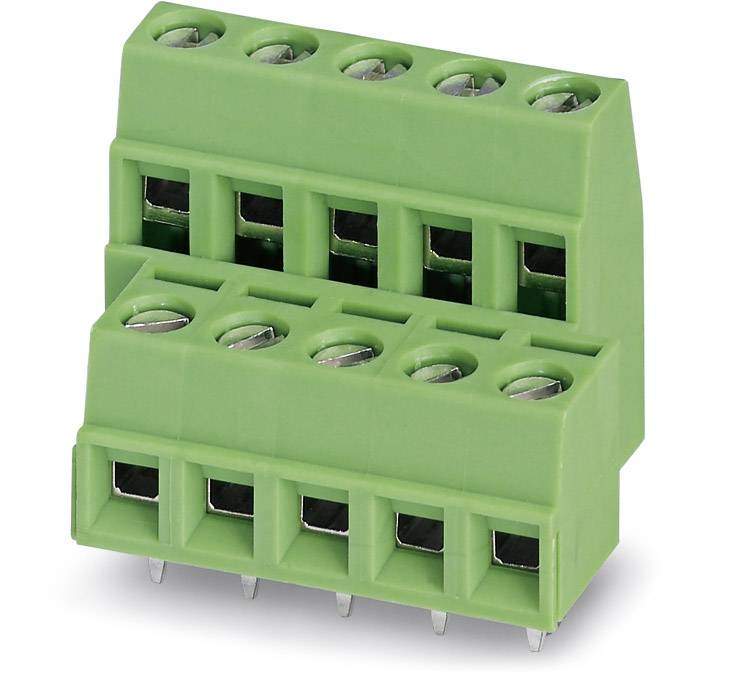

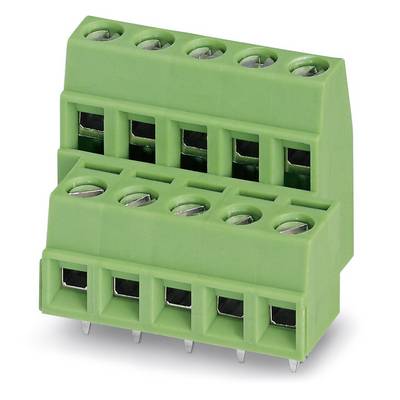

Phoenix Contact 1870271 2-tier terminal 1.50 mm² Number of pins 20 Green 50 pc(s)
EAN:
Part number:
Item no:
Product type
2-tier terminal
CS
5.08 mm
Pins per row
10
Number of pins
20
Connection
Screw terminal
Print
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 5.53 / piece)
€ 285.71
€ 276.47
plus VAT.
14-day return policy included
Highlights & Details
PCB terminal block MKKDSN 1,5/10-5,08
- Content 50 pc(s)
Technical specifications
- Type
MKKDSN 1,5/10-5,08
- Product type
2-tier terminal
- Features
+ extractor sleeve
- CS
5.08 mm
- Pins per row
10
- Number of pins
20
- Series
MKKDSN
- Stripping length (max.)
6.00 mm
- Connection
Screw terminal
Print
- Nominal current
13.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
13.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
16
- Contact material
Tin plated
- Factory colour
Green
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1870271
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
400 V
- Width
50.80 mm
- Height
22.60 mm
- Length
18.30 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 717130 Phoenix Contact 1870271 2-tier terminal 1.50 mm² Number of pins 20 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 717130 Phoenix Contact 1870271 2-tier terminal 1.50 mm² Number of pins 20 Green 50 pc(s)
Description
PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 10, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
