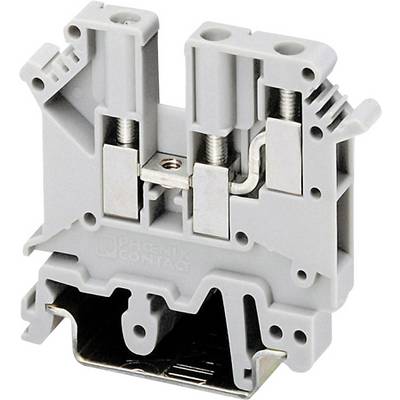

Phoenix Contact 1923021 Continuity 6.2 mm Screws Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.77
5
6% = € 0.24
€ 3.53
10
9% = € 0.34
€ 3.43
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.77 / piece)
€ 3.77
plus VAT.
14-day return policy included
Highlights & Details
Twin terminal
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
3
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Stripping length (max.)
8 mm
- Manufacturer part #
1923021
- Content
1 pc(s)
- Industrial packaging
No
- Type
UK 5-TWIN
- Dim
(L x W x H) 50.5 x 6.2 x 38 mm
- Width
6.2 mm
- Height
38 mm
- Length
50.5 mm
- Flammability rating
V2
- Nominal current (details)
35 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 743424 Phoenix Contact 1923021 Continuity 6.2 mm Screws Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 743424 Phoenix Contact 1923021 Continuity 6.2 mm Screws Grey 1 pc(s)
Description
Profile the same as UK 5 N to UK 10 N on the input side. Two separate wire connections on the switchboard side. Bridgable at the centre with adjacent feed-through terminals UK 5 N to UK 10 N.
