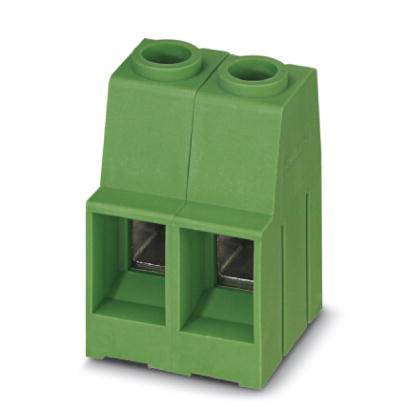

Phoenix Contact 1929517 Screw terminal 16.00 mm² Number of pins 2 Green 50 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
10.16 mm
Pins per row
2
Number of pins
2
Connection
Screw terminal
Print
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.28 / piece)
€ 172.27
-5 %
€ 163.86
plus VAT.
14-day return policy included
Technical specifications
- Type
MKDSP 10HV/ 2-10,16
- Product type
Screw terminal
- Features
+ extractor sleeve
- CS
10.16 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
MKDSP
- Min. stripping length
10 mm
- Stripping length (max.)
10 mm
- Connection
Screw terminal
Print
- Nominal current
76 A
- Cross section (flexible) (min.)
0.50 mm²
- Nominal current - rounded value
76 A
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
16.00 mm²
- Cross section (inflexible) (max.)
16.00 mm²
- AWG (min.)
20
- Connector orientation
Parallel (to the PCB)
- AWG max.
6
- Contact material
Tin plated
- Enclosure material
Polyamide 6.6
- Factory colour
Green
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1929517
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
1000 V
- Width
35.80 mm
- Height
22.00 mm
- Length
20.32 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566949 Phoenix Contact 1929517 Screw terminal 16.00 mm² Number of pins 2 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 566949 Phoenix Contact 1929517 Screw terminal 16.00 mm² Number of pins 2 Green 50 pc(s)
Description
PCB terminal block, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 10.16 mm, Number of positions: 2, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions! Equipment ratings in acc. with UL, for 600 V applications, are possible. The insulation requirements of the respective devices for PCB assembly must be observed for this purpose (e.g. UL 508, UL 840).
