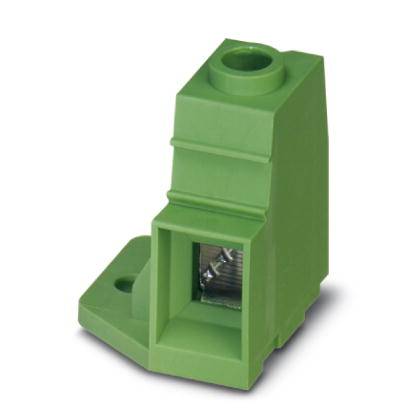

Phoenix Contact 1932575 Screw terminal 35.00 mm² Number of pins 1 Green 25 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screw terminal
CS
15 mm
Pins per row
1
Number of pins
1
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 2.69 / piece)
€ 74.78
-10 %
€ 67.22
plus VAT.
Only 4 Set(s) available
Technical specifications
- Packaging type
Piece
- Type
MKDSP 25/ 1-15,00-FL
- Product type
Screw terminal
- Features
+ extractor sleeve
+ flange
- CS
15 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
MKDSP
- Min. stripping length
18 mm
- Stripping length (max.)
18 mm
- Connection
Screw terminal
Print
- Nominal current
125 A
- Cross section (flexible) (min.)
0.50 mm²
- Nominal current - rounded value
125 A
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
35.00 mm²
- Cross section (inflexible) (max.)
35.00 mm²
- AWG (min.)
20
- Connector orientation
Parallel (to the PCB)
- AWG max.
2
- Contact material
Cathode copper, tin plated
- Enclosure material
Polyamide 6.6
- Factory colour
Green
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1932575
- Industrial packaging
Yes
- Content
25 pc(s)
- Nominal voltage
1000 V
- Width
43.50 mm
- Height
31.00 mm
- Length
30.00 mm
Documents & Downloads
Datasheet
Datasheet 789888 Phoenix Contact 1932575 Screw terminal 35.00 mm² Number of pins 1 Green 25 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 789888 Phoenix Contact 1932575 Screw terminal 35.00 mm² Number of pins 1 Green 25 pc(s) Piece
Description
PCB terminal block, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 1, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, An opening is made in the area around the mounting flange. The flanges are fastened to the device with bolts to support the MKDSP 25.
