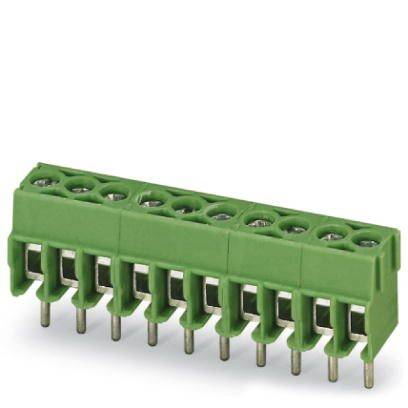

Phoenix Contact 1984743 Print terminal 1.5 mm² Number of pins 15 Green 50 pc(s)
EAN:
Part number:
Item no:
Product type
Print terminal
CS
3.5 mm
Pins per row
15
Number of pins
15
Connection
Screws
Print
Datasheet (PDF)
Technical specifications
- Screw thread: m2
- Mounting type: Wave soldering
- Number of connections: 15
- Pluggable: No.
- Tightening torque: 0.22 Nm ... 0.25 Nm
- Surface quality: Galvanized tin-plated
- Metal surface solder area (cover layer): Tin (3 - 12 µm Sn)
- Insulating material: PA
- Insulating material group: I
- Height (height without solder pin): 9.15 mm
- Pin length 4.5 mm
- Pin dimensions Ø 0.9 mm
- Rated surge voltage (III/3) 2.5 kV
- Nominal cross-section 1.5 mm²
- Type
PT 1,5/15-3,5-H
- Product type
Print terminal
- Features
+ wire protector

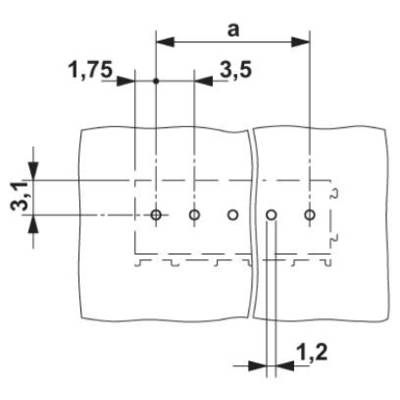

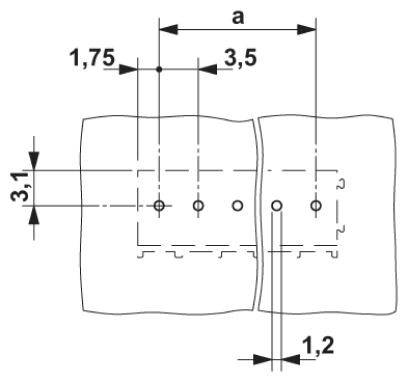

- CS
3.5 mm
- No. of rows
1
- Pins per row
15
- Number of pins
15
- Stripping length (max.)
5 mm
- Connection
Screws
Print

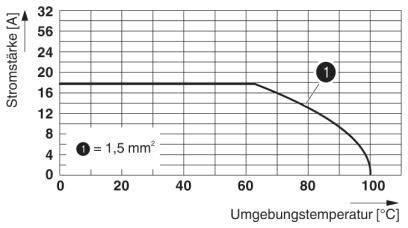

- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
16
- Contact material
Cu-alloy, tin plated
- Enclosure material
Polyamide
- Factory colour
Green
- Manufacturer part #
1984743
- Content
50 pc(s)
- Nominal voltage
200 V
- Width
52.5 mm
- Height
13.65 mm
- Length
7.55 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209568 Phoenix Contact 1984743 Print terminal 1.5 mm² Number of pins 15 Green 50 pc(s)
Datasheet 2209568 Phoenix Contact 1984743 Print terminal 1.5 mm² Number of pins 15 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2209568 Phoenix Contact 1984743 Print terminal 1.5 mm² Number of pins 15 Green 50 pc(s)
Description
Well-known connection principle allows worldwide use. Low heating due to highest contact force. Large terminal capacity by rectangular terminal space. Allows two conductors to be connected. Lateral locking allows individual composition of different number of poles.
