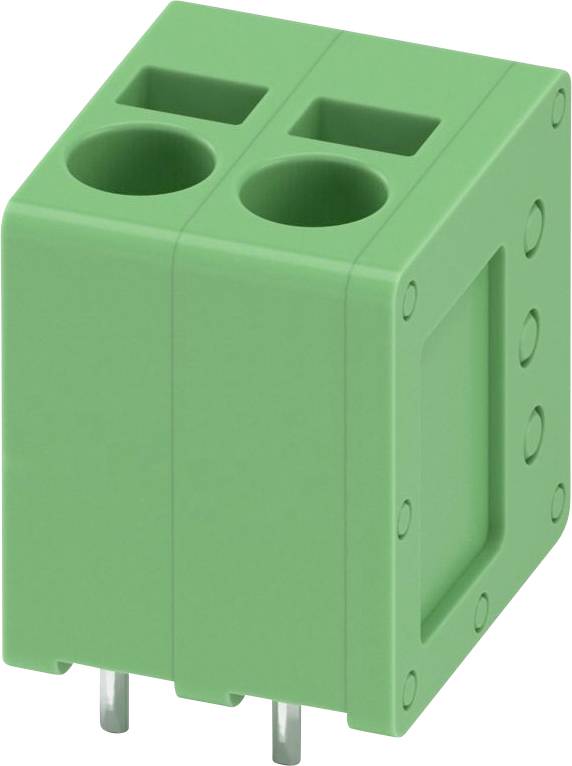

Phoenix Contact 1991095 PCB terminal 2.5 mm² Number of pins 2 Green 240 pc(s)
EAN:
Part number:
Item no:
Product type
PCB terminal
CS
5 mm
Pins per row
2
Number of pins
2
Connection
Push-in spring-loaded terminal
Datasheet (PDF)
Technical specifications
- Type
SPT 2,5/ 2-V-5,0
- Product type
PCB terminal
- Features
+ push-in spring bracket
- CS
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
SPT
- Connection
Push-in spring-loaded terminal
- Nominal current
24 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1991095
- Content
240 pc(s)
- Height
16.9 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3453307 Phoenix Contact 1991095 PCB terminal 2.5 mm² Number of pins 2 Green 240 pc(s)
User & Safety Instructions
User & Safety Instructions 3453307 Phoenix Contact 1991095 PCB terminal 2.5 mm² Number of pins 2 Green 240 pc(s)
