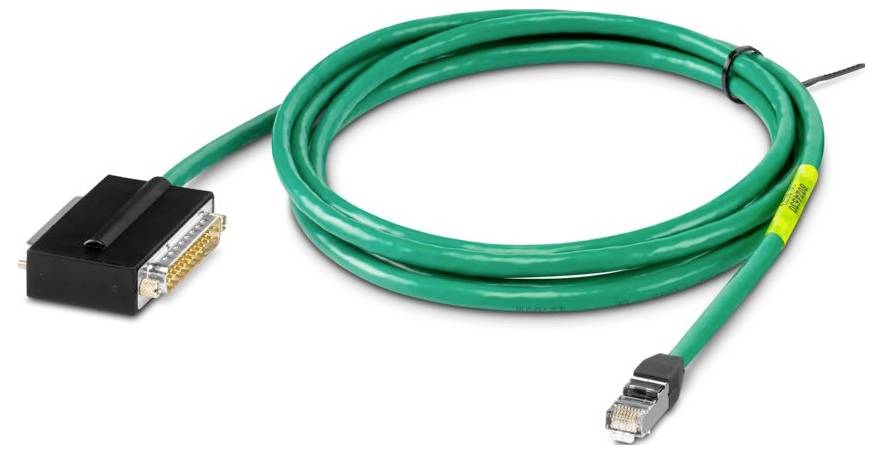

Image similar
Phoenix Contact 2.5 m RJ45, D-SUB (25-pin, plug), D-SUB (25-pin, socket) 1 pc(s) CABLE-25/8/250/PSR-M/001/L Compatible w
EAN:
Part number:
Item no:
Packaging type
Piece
Cable length
2.5 m
Type
CABLE-25/8/250/PSR-M/001/L
Compatible with
Phoenix Contact PSR-M-EM
Material
PVC
Datasheet (PDF)
Technical specifications
- Number of poles: 25
- Connection type D-SUB-25 plug/D-SUB-25 socket
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -30 °C ... 80 °C (when permanently installed)
- Note for application: Only for industrial use
- To device: To the device
- Encoder/PLC: Encoder/PLC.
- Outer sheath, material: PVC
- Material conductor: Plain Cu stranded conductor
- cable length 2.5 m
- Cable cross-section: 0.48 mm² (AWG 26)
- Shielding: Plastic coated aluminum foil, braided made of tin-plated copper wires; soldered on D-SUB housing
- Line resistance: ≤ 144 Ω/km (loop)
- Outer sheath, color: Green RAL 6016
- Packaging type
Piece
- Type
CABLE-25/8/250/PSR-M/001/L
- Compatible with
Phoenix Contact PSR-M-EM
- Material
PVC
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Content
1 pc(s)
- Connector
RJ45
D-SUB (25-pin, plug)
D-SUB (25-pin, socket)
- Cable length
2.5 m
- Length
2.5 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3569812 Phoenix Contact 2.5 m RJ45, D-SUB (25-pin, plug), D-SUB (25-pin, socket) 1 pc(s) CABLE-25/8/250/PSR-M/001/L Compatible w
User & Safety Instructions
User & Safety Instructions 3569812 Phoenix Contact 2.5 m RJ45, D-SUB (25-pin, plug), D-SUB (25-pin, socket) 1 pc(s) CABLE-25/8/250/PSR-M/001/L Compatible w
Description
Cable adapter for PSR-M-EM... ), 25/8-pin, cable entry left, cable length 2.5 m.
