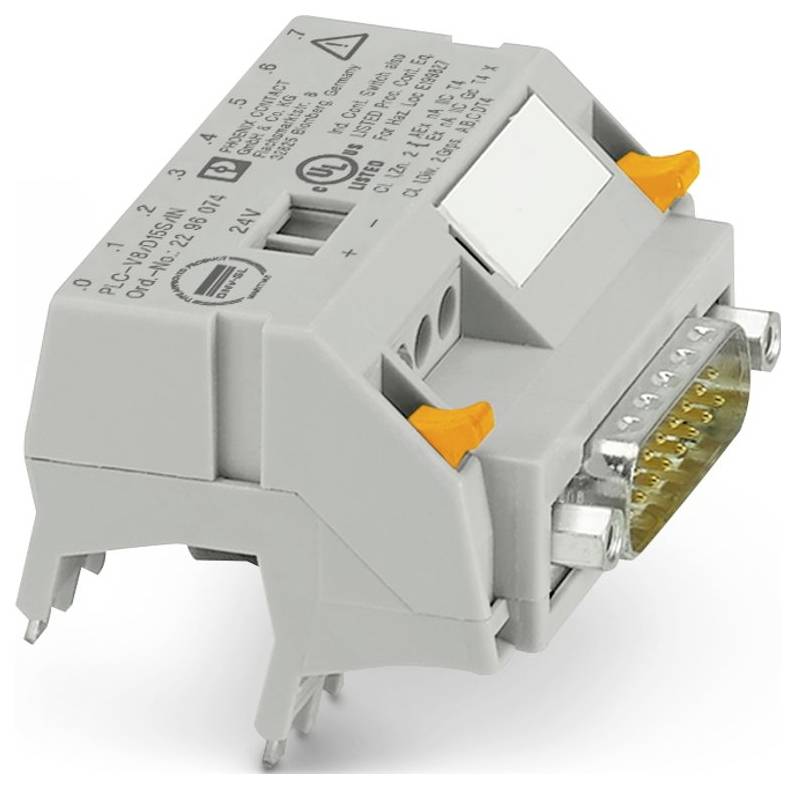

Phoenix Contact 2296074 PLC-V8/D15S/IN System connection
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: PLC INTERFACE
- Number of poles: 2
- Connection type: screw terminals.
- M3 screw thread
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²;0.25 mm² ... 2.5 mm² (wire-end sleeve without plastic sleeve);0.25 mm² ... 2.5 mm² (wire-end sleeve with plastic sleeve)
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12
- Width: 49.92 mm
- Height: 41 mm
- Depth: 49.86 mm
- Colour: Grey (RAL 7042)
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Altitude: ≤ 2000 m.
- Standards/regulations: EN IEC 60664-1
- Note: Can be snapped onto 8x PLC INTERFACE terminals
- Mounting type: Plug-in assembly
- Overvoltage category II
- Pollution level: 2
- Stripped length: 8 mm
- Air and creepage distances: Air and creepage distances
- All mounting positions permitted
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Identification: Class I, zone 2, AEx ec IIC T4
- UL, USA / Canada: UL, USA / Canada
- Operating voltage range: 18 V DC ... 33.6 V DC
- Contact spacing: 5 mm
- Connection according to IEC 60807-2 standard
- CE CE
- Certificate: TAE00196
- Article dimensions: Article dimensions
- Mounting instructions: Can be aligned in series without spacing
- Electromagnetic compatibility: Conformity to EMC directive
- Low-voltage directive: Conformity to the NS directive
- Ship building approval: Ship building approval
- Number of channels: 8
- Insulation: Functional insulation
- Operating voltage display: Green LED
- UL, USA: UL, USA
- UL, Canada: UL, Canada
- UKCA
- Shipbuilding data: Shipbuilding data
- Temperature D
- Humid A
- Vibration C
- EMC B
- Enschnung: Schutzabdeckung auf die Reihenklemme am Schallend beiliegende Schutzabdeckung auf
- Rated insulation voltage 50 V
- Rated surge voltage 0.5 kV (1.2 / 50 μs)
- Protection type (installation location) ≥ IP54
- Conductor cross-section flexible (2 conductors of the same cross-section): 0.2 mm² ... 1.5 mm²;0.25 mm² ... 0.75 mm² (wire-end sleeve without plastic sleeve);0.5 mm² ... 1.5 mm² (TWIN-end sleeve with plastic sleeve)
- Status display available: Yes
- Number of connections: 1
- Insulation properties: Air and creepage distances: Insulation properties: Air- and creepage distances
- Insulation material type Housing: Polyamide 6.6 green
- Mating cycles: 500
- Matching I/O-Card: Universal
- Current (each branch): ≤ 1 A.
- Connection 1 (control level): Connection 1 (control level)
- Connection 2 (field level): Connector 2 (field level)
- Conductor cross-section rigid (2 conductors of the same cross-section): 0.2 mm² ... 1.5 mm².
- Protection class (module) IP20
- Supported control: Universal: Supported control: Universal
- Track 3 (power supply): Track 3 (power supply)
- Current (voltage supply): ≤ 3 A.
- Product type
System connection
- Type
PLC-V8/D15S/IN
- Height
41 mm
- Length
49.86 mm
- Width
49.92 mm
- Dim
(L x W x H) 49.86 x 49.92 x 41 mm
- Manufacturer part #
2296074
- Fitting type (details)
Plug-on assembly
- Content
1 pc(s)
- Depth
49.86 mm
- Test current
1 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3578862 Phoenix Contact 2296074 PLC-V8/D15S/IN System connection
User & Safety Instructions
User & Safety Instructions 3578862 Phoenix Contact 2296074 PLC-V8/D15S/IN System connection
Description
V8 adapter for 8 x PLC INTERFACE (6.2 mm), control: PLC system wiring of input cards, connection 1: D-SUB header 1x 15-pin, connection 2: Plug connection (can be snapped onto 8x PLC INTERFACE terminals), connection 3: Screw connection 1x 2-pin, number of channels: 8, control logic: Positive switching
