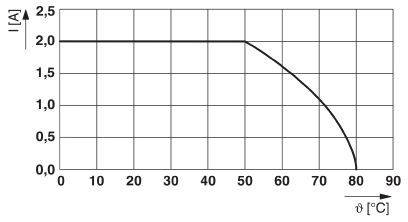

!['Diagram shows current I[A] against temperature θ[°C]; linear at 2.0A up to 60°C, then drops steeply to 0 at 85°C.'](https://asset.conrad.com/media10/isa/160267/c1/-/en/002209683TI01/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/2
Image similar
Phoenix Contact 2305596 CABLE-D 9SUB/S/S/300/KONFEK/S PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Connection type: D-SUB pin strip
- Name Connection: Field level
- Rated insulation voltage 125 V.
- Dimensioning surge voltage: 1.2 kV
- Schutzart1: ≥ IP54 (installation location)
- Max. Permissible operating voltage 25 V AC
- Max. Current carrying capacity per path: 2 A (50 °C)
- Cable length 3 m
- Cable outer diameter 6.7 mm ±0.5 mm
- Single core, 0.25 mm² cross-section
- Single core, cross section [AWG]: 24
- Single wire, number of strands: 14
- Single wire, material: Plain copper
- Wire diameter including insulation: 1.2 mm ±0.05 mm
- Smallest bending radius, fixed installation: 58 mm
- Smallest bending radius, movable laid: 108 mm
- Bending cycles: 5000 (for radius ≥ 15x outer diameter)
- Line insulation resistance: ≥ 20 MΩ/km (at 20 °C)
- Line resistance: ≤ 80 Ω/km (at 20 °C)
- Outer sheath, material: Semi-rigid PVC
- Number of ports: 1
- Number of pins: 9
- Tightening torque: 0.2 Nm
- Mating cycles> 200
- Oil resistance: Against occasional splashes
- Petrol resistance: Against occasional splashes
- Pollution level: 2
- Overvoltage category II
- Control: Universal
- Product type
PLC cable
- Type
CABLE-D 9SUB/S/S/300/KONFEK/S
IP20
- Manufacturer part #
2305596
- Content
1 pc(s)
PLC - other devices
9
3 m
Other
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209683 Phoenix Contact 2305596 CABLE-D 9SUB/S/S/300/KONFEK/S PLC cable
Datasheet 2209683 Phoenix Contact 2305596 CABLE-D 9SUB/S/S/300/KONFEK/S PLC cable
User & Safety Instructions
User & Safety Instructions 2209683 Phoenix Contact 2305596 CABLE-D 9SUB/S/S/300/KONFEK/S PLC cable
Description
Assembled, shielded round cable; connection 1: D-SUB pin strip (1x 9-pin); connection 2: D-SUB pin strip (1x 9-pin); cable length: 3 m.
