Phoenix Contact 2305978 FLK 14/EZ-DR/HF/ 150/KONFEK PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -40 °C ... 70 °C (fixed installation)
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Connection type: IDC/FLK socket strip
- Name Connection: Field level
- Rated insulation voltage 63 V.
- Dimensioning surge voltage: 0.6 kV
- Schutzart1: ≥ IP54 (installation location)
- Max. Permissible operating voltage 25 V AC
- Max. Current carrying capacity per path: 1 A (50 °C)
- Cable length: 1.5 m
- Cable outer diameter 5.8 mm ±0.4 mm
- Single conductor, cross-section 0.14 mm²
- Single core, cross section [AWG]: 26
- Single wire, number of strands: 7
- Single wire, material: CU tin-plated
- Wire diameter including insulation: 1 mm ±0.03 mm
- Smallest bending radius, fixed installation: 50 mm
- Smallest bending radius, movable laid: 93 mm
- Bending cycles: 5000 (for radius ≥ 15x outer diameter)
- Line insulation resistance ≥ 20 MΩ/km (20 °C)
- Line resistance: ≤ 145 Ω/km (20 °C)
- Outer sheath, material: Halogen-free (type 2)
- Number of ports: 1
- Number of pins: 14
- Mating cycles> 50
- Oil resistance: Against occasional splashes
- Petrol resistance: Against occasional splashes
- Pollution level: 2
- Overvoltage category II
- Control: Siemens S7-1500
- Cable, packing: Insulation displacement technology, IEC 60352-4/DIN EN 60352-4
- Pitch: 2.54 mm
- Product type
PLC cable
- Type
FLK 14/EZ-DR/HF/ 150/KONFEK
IP00
- Manufacturer part #
2305978
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209684 Phoenix Contact 2305978 FLK 14/EZ-DR/HF/ 150/KONFEK PLC cable
Datasheet 2209684 Phoenix Contact 2305978 FLK 14/EZ-DR/HF/ 150/KONFEK PLC cable
User & Safety Instructions
User & Safety Instructions 2209684 Phoenix Contact 2305978 FLK 14/EZ-DR/HF/ 150/KONFEK PLC cable
Description

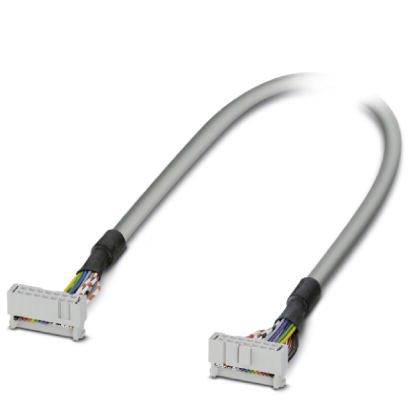

Assembled, halogen-free round cable; connector 1: IDC/FLK female connector (1x 14-pin); connector 2: IDC/FLK female connector (1x 14-pin); cable length: 1.5 m.
