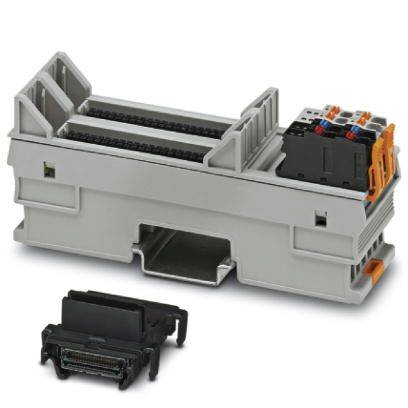

Phoenix Contact 2316393 AXL P FBPS BASE PLC power supply unit
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -40 °C ... 65 °C (installation position: Wall mounting on horizontal mounting rail)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Permissible humidity (storage/transport): 5 % ... 95 %.
- Interface: PROFIBUS
- Connection type: Socket module
- Typical current consumption 750 mA ()

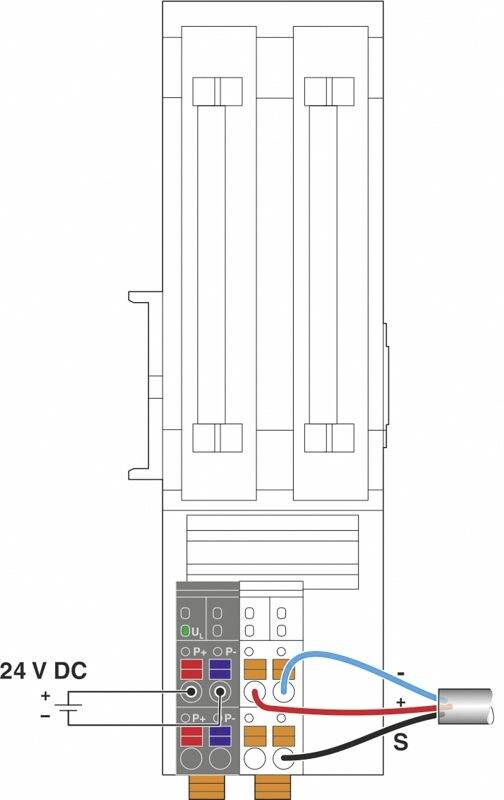

- Supply voltage range: 18.5 V DC ... 30.5 V DC
- Current consumption max. 950 mA (18.5 V DC, 500 mA load)
- Pollution level: 2
- Overvoltage category II
- Conductor cross-section rigid min: 0.20 mm²
- Conductor cross-section rigid max. 1.50 mm²
- Conductor cross-section flexible min.: 0.20 mm²
- Conductor cross-section flexible max. 1.50 mm²
- Conductor cross-section AWG min: 24
- Conductor cross-section AWG max. 16
- Product type
PLC power supply unit
- Type
AXL P FBPS BASE

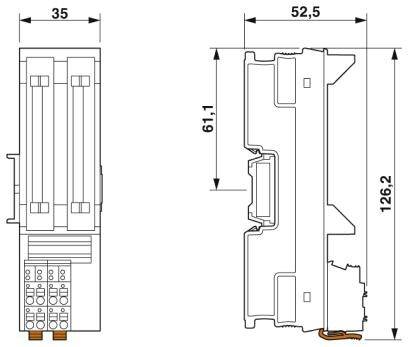

- Height
130 mm
- Length
125 mm
- Width
35 mm
IP20
- Dim
(L x W x H) 125 x 35 x 130 mm
- Manufacturer part #
2316393
- Max. ambient temperature
65 °C
- Min. ambient temperature
-40 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209709 Phoenix Contact 2316393 AXL P FBPS BASE PLC power supply unit
Datasheet 2209709 Phoenix Contact 2316393 AXL P FBPS BASE PLC power supply unit
User & Safety Instructions
User & Safety Instructions 2209709 Phoenix Contact 2316393 AXL P FBPS BASE PLC power supply unit
Description

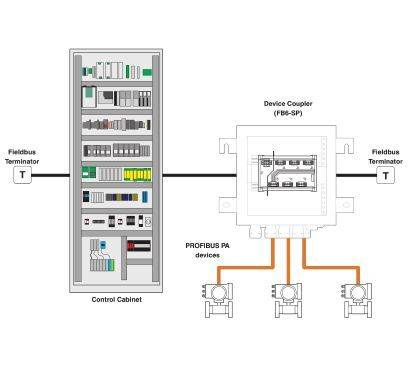

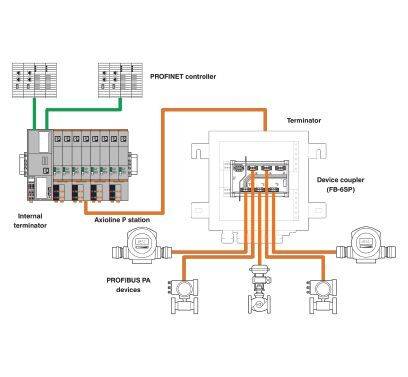

Axioline P socket for PROFIBUS PA power supply plug. Redundancy exists if two connectors are installed. Redundancy is maintained through the backplane connectors across multiple sockets.
