Buy Phoenix Contact 2320827 Rail mounted PSU (DIN) 48 V DC 20 A 960 W No. of outputs:1 x Content 1 pc(s)

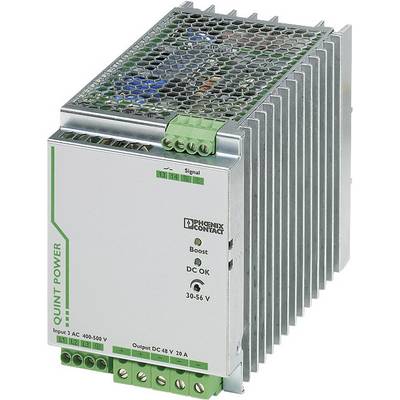

Power supply module with metal heatsink, labelled 'Quint Power' by Phoenix Contact. Inputs 3 AC 400-500 V, Output DC 48 V 20 A.

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 827.73 / piece)

€ 827.73

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Phoenix Contact QUINT-PS/ 3AC/48DC/20

48 V DC / 20 A
960 W
Input voltage range 3x 320 - 575 V/AC / 450 - 800 V DC

Technical specifications

Protection class IP20, protection class I

Nominal input voltage: 400 V/AC
450 - 800 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 320 V AC

Output voltage: 48 V DC

Input voltage: 3x 320 - 575 V/AC / 450 - 800 V DC

Input voltage (max.): 575 V AC

Max. output current: 20 A

Output current (max.) - rounded: 20 A

: 960 W

Output type (power supply units): Adjustable

Phases: 3

Output voltage (nominal): 48 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 96 x 130 x 176 mm

Weight: 3.0 kg

Output voltage (max.): 56 V DC

Output voltage (min.): 30 V DC

Manufacturer part #: 2320827

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 96 mm

Height: 130 mm

Type: QUINT-PS/3AC/48DC/20

Depth: 176 mm

: 960 W

Output current (details): 20 A

: 96

: 130 mm

: 179 mm

: 130 mm

: 1386 W

: FALSE

: TRUE

: AC/DC

: Screw connection

: TRUE

: IP20

: None

: None

: Other

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 514791 Phoenix Contact 2320827 Rail mounted PSU (DIN) 48 V DC 20 A 960 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 514791 Phoenix Contact 2320827 Rail mounted PSU (DIN) 48 V DC 20 A 960 W No. of outputs:1 x Content 1 pc(s)

Description

The Phoenix Contact QUINT-PS/3AC/48DC/20 belongs to the Quint power supply series, which are primary-switched 24 V power supplies of 60 - 960 W. With a regulated and adjustable output voltage these devices feature a high level of efficiency and compact design. International approvals and a wide-range input guarantee worldwide, universal usage. An integrated function monitoring feature diagnoses unreliable operating states. The QUINT-PS/3AC/48DC/20 provides continuous full output power in unstable networks when power outages lasting more than 20 ms occur or a phase fails. The POWER BOOST power reserve ensures that more complex consumers, for example, capacitive loads with high switch-on currents are activated.
