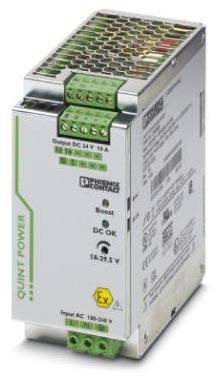

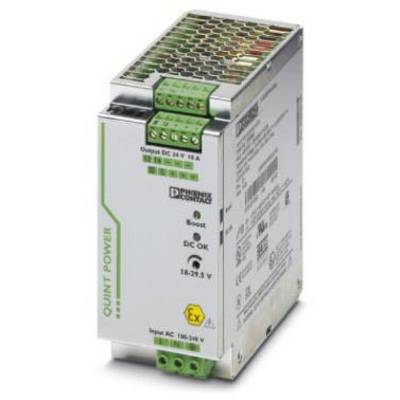

Phoenix Contact 2320911 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
14-day return policy included
Power supply, protective paint
Technical specifications
- Dielectric strength: 300 V/AC
- Wire stripping length: 7 mm
- CURRENT CONSUMPTION 2.2 A (120 V/AC), 1.3 A (230 V/AC), 2.5 A (110 V/DC), 1.2 A (220 V/DC)
- Nominal power consumption 303 VA
- Nominal input voltage
100-240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage
85 V/AC - 264 V AC
- Input voltage (max.)
264 V AC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Phases
1
- Connection
Push-fit screw connector
- Dim
(L x W x H) 125 x 60 x 130 mm
- Weight
1.1 kg
- Output voltage (max.)
24 V DC
- Operating temperature (max.)
+70 °C
- Min. operating temperature (derating)
+60 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
2320911
- Content
1 pc(s)
- MTBF
940000 h
- Width
60 mm
- Height
130 mm
- Length
125 mm
IP20
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
QUINT-PS/1AC/24DC/10/CO
- Efficiency
92.5 %
60
130 mm
125 mm
130 mm
303 W
FALSE
TRUE
AC/DC
Screw connection
TRUE
IP20
None
None
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209722 Phoenix Contact 2320911 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)
Datasheet 2209722 Phoenix Contact 2320911 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2209722 Phoenix Contact 2320911 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)
Description
For maximum plant availability. Reliable starting of heavy loads with the static power reserve POWER BOOST with up to 1.5 times the rated current permanently. Fast triggering of standard circuit breakers with the dynamic power reserve SFB (Selective Fuse Breaking) Technology with up to 6-fold nominal current for 12 ms.
